Galton's whistle: Compressed air whistle.
3C20.15 • B+45+45

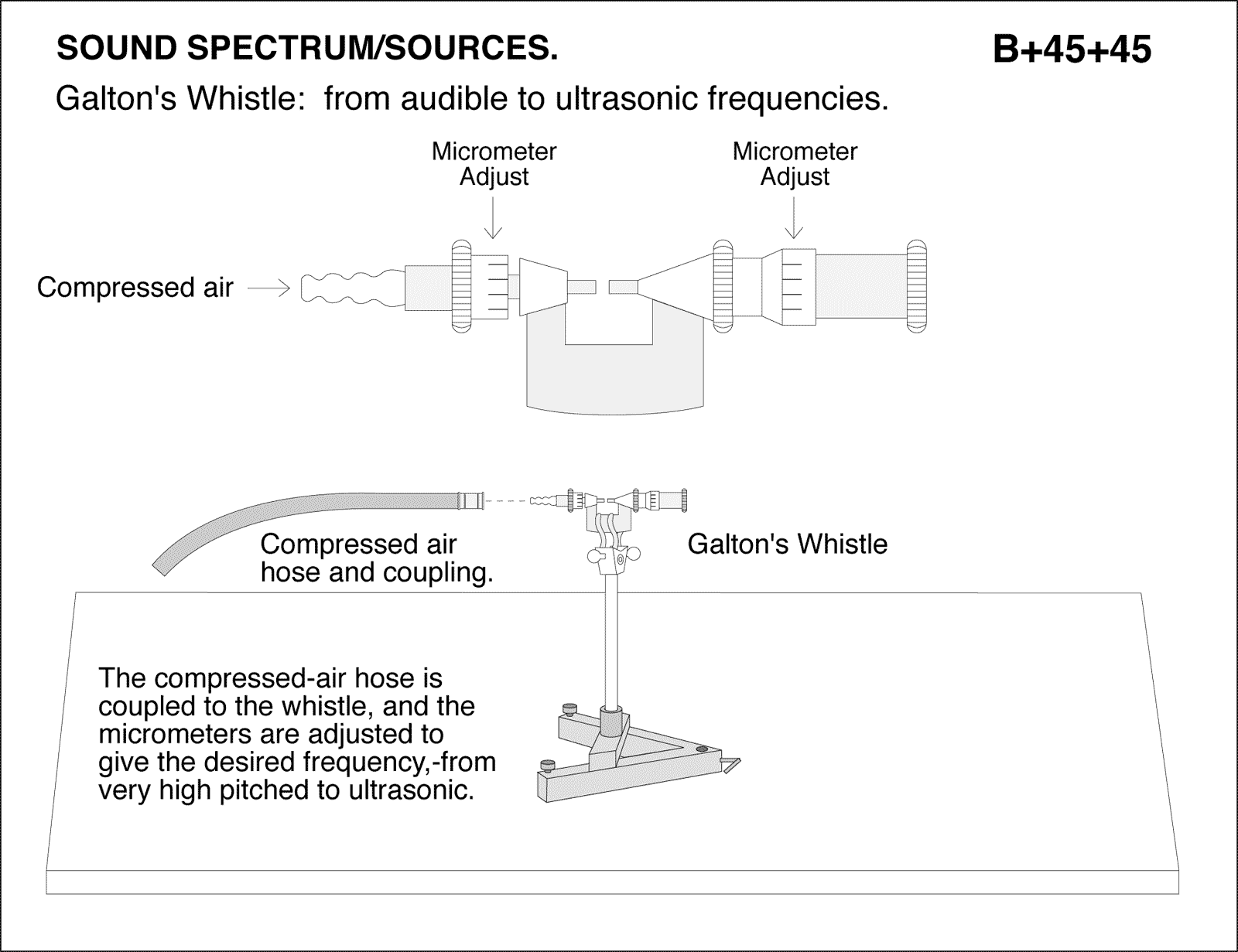

Galton's Whistle: from audible to ultrasonic frequencies. The compressed-air hose is coupled to the whistle, and the micrometers are adjusted to give the desired frequency,-from very high pitched to ultrasonic.
