Bell ringing in a jar evacuated with pump.
3B30.30 • B+45+15

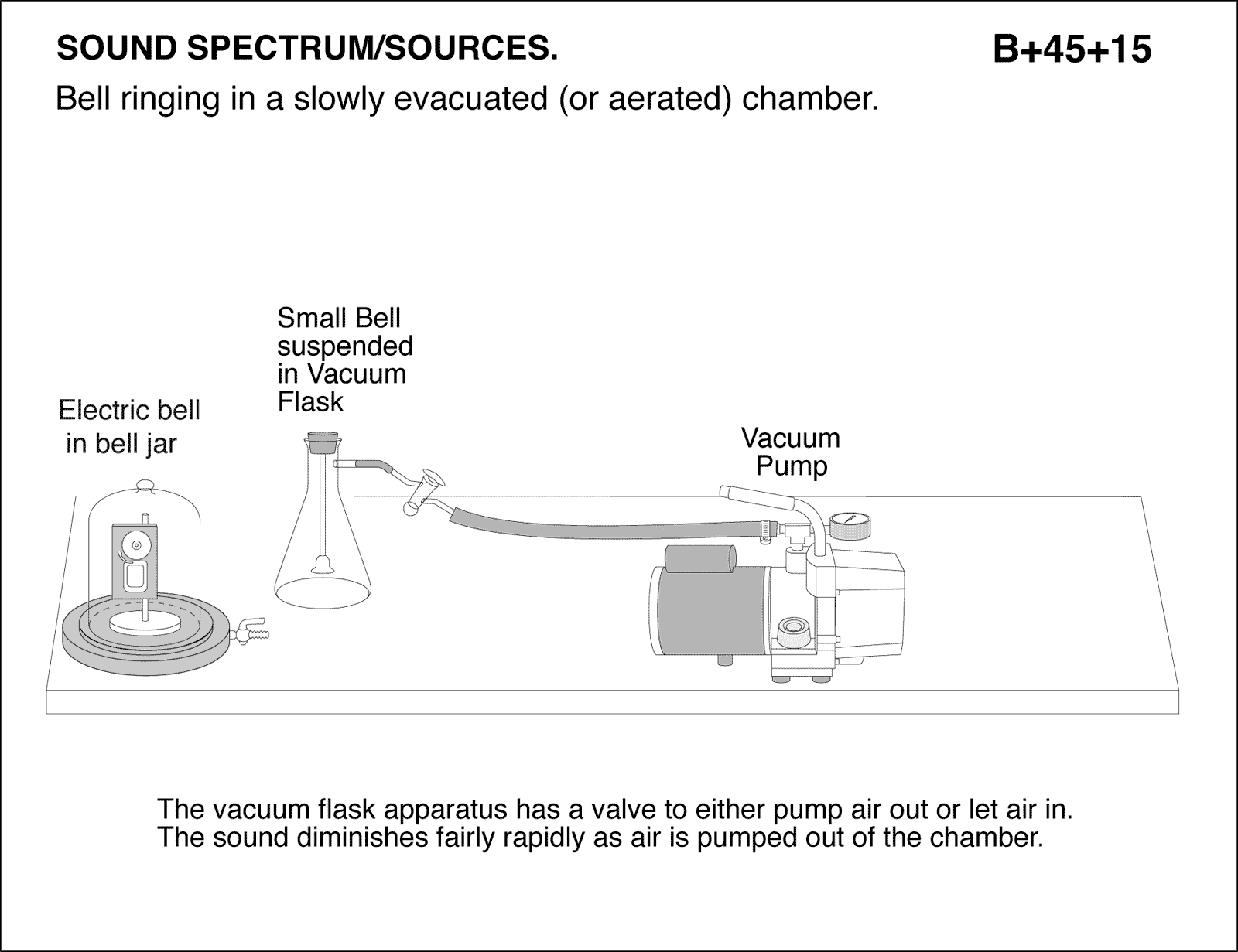

Bell ringing in a slowly evacuated (or aerated) chamber. The vacuum flask apparatus has a valve to either pump air out or let air in. The sound diminishes fairly rapidly as air is pumped out of the chamber.
