Compressed air jet blows through spinning disk with holes.

3C20.30 • B+45+30

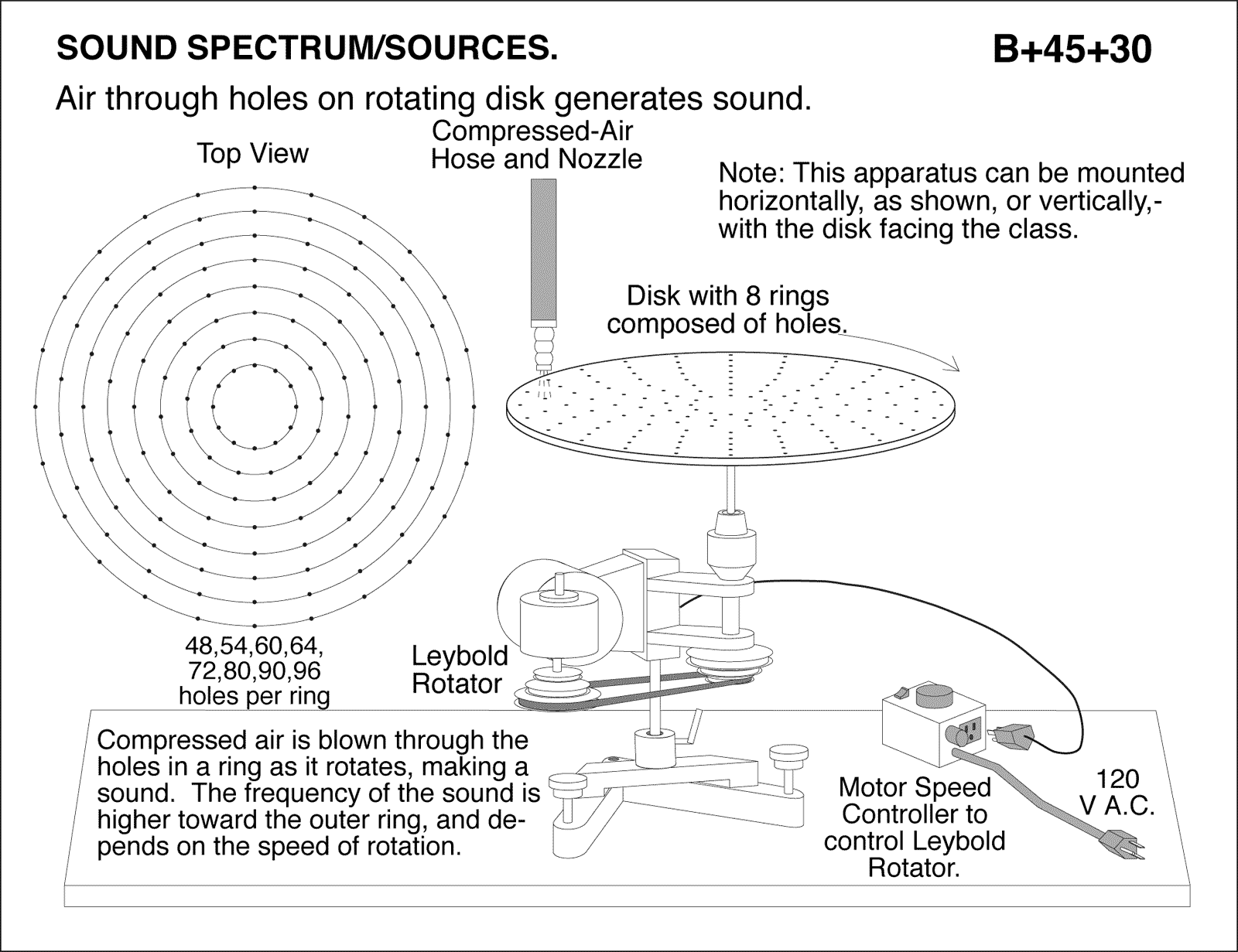

diagram for demo

Air through holes on rotating disk generates sound. This apparatus can be mounted horizontally, as shown, or vertically,- with the disk facing the class. Compressed air is blown through the holes in a ring as it rotates, making a sound. The frequency of the sound is higher toward the outer ring, and depends on the speed of rotation.
