Lissajous figures with laser and two signal generators.
3A80.40 • B+10+35

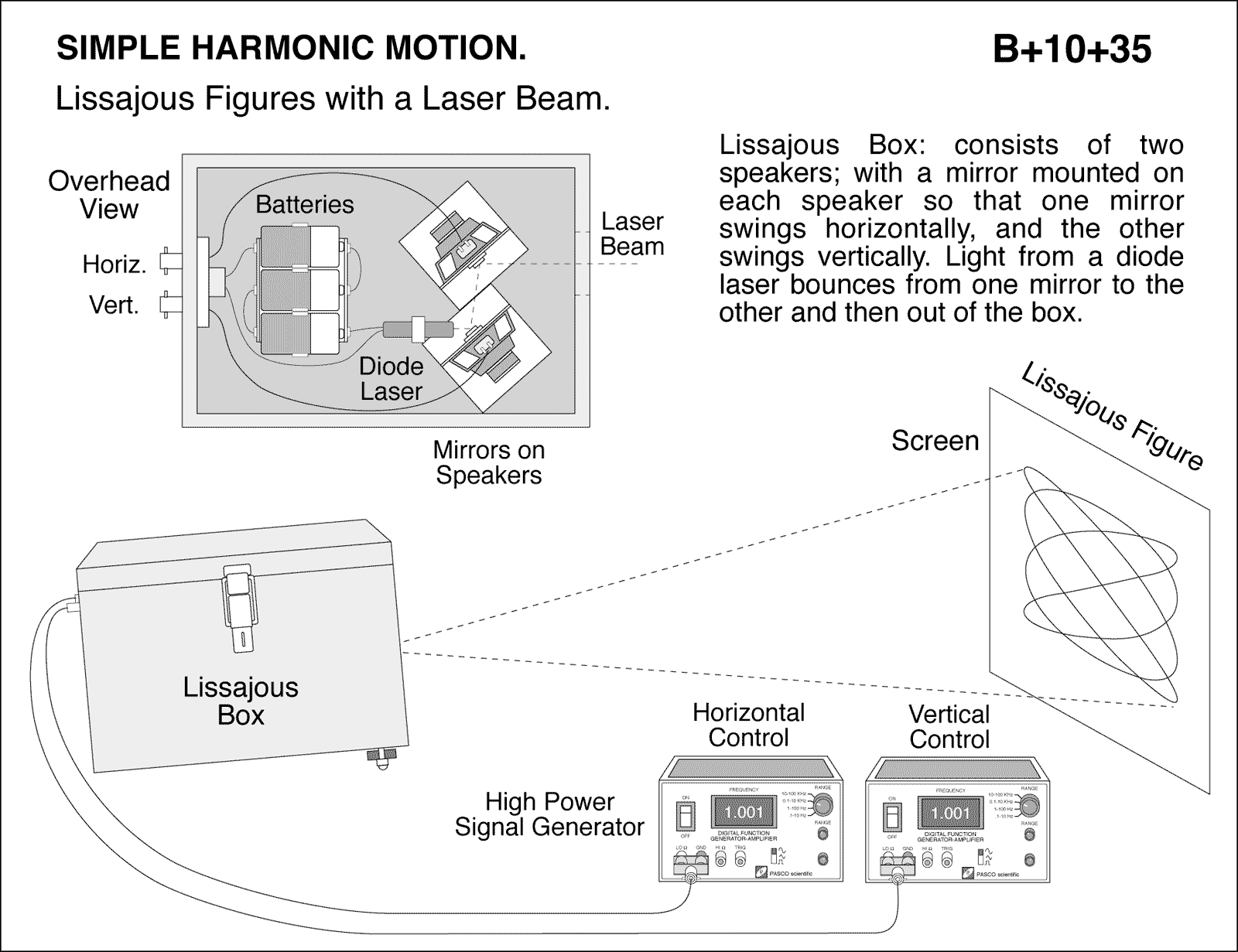

Lissajous figures with laser and two signal generators. Lissajous Box consists of two speakers with a mirror mounted on each speaker so that one mirror swings horizontally, and the other swings vertically. Light from the diode laser bounces from one mirror to the other and then out of the box.
