Damped oscillations: Flat steel spring with removable weights.
• B+10+30

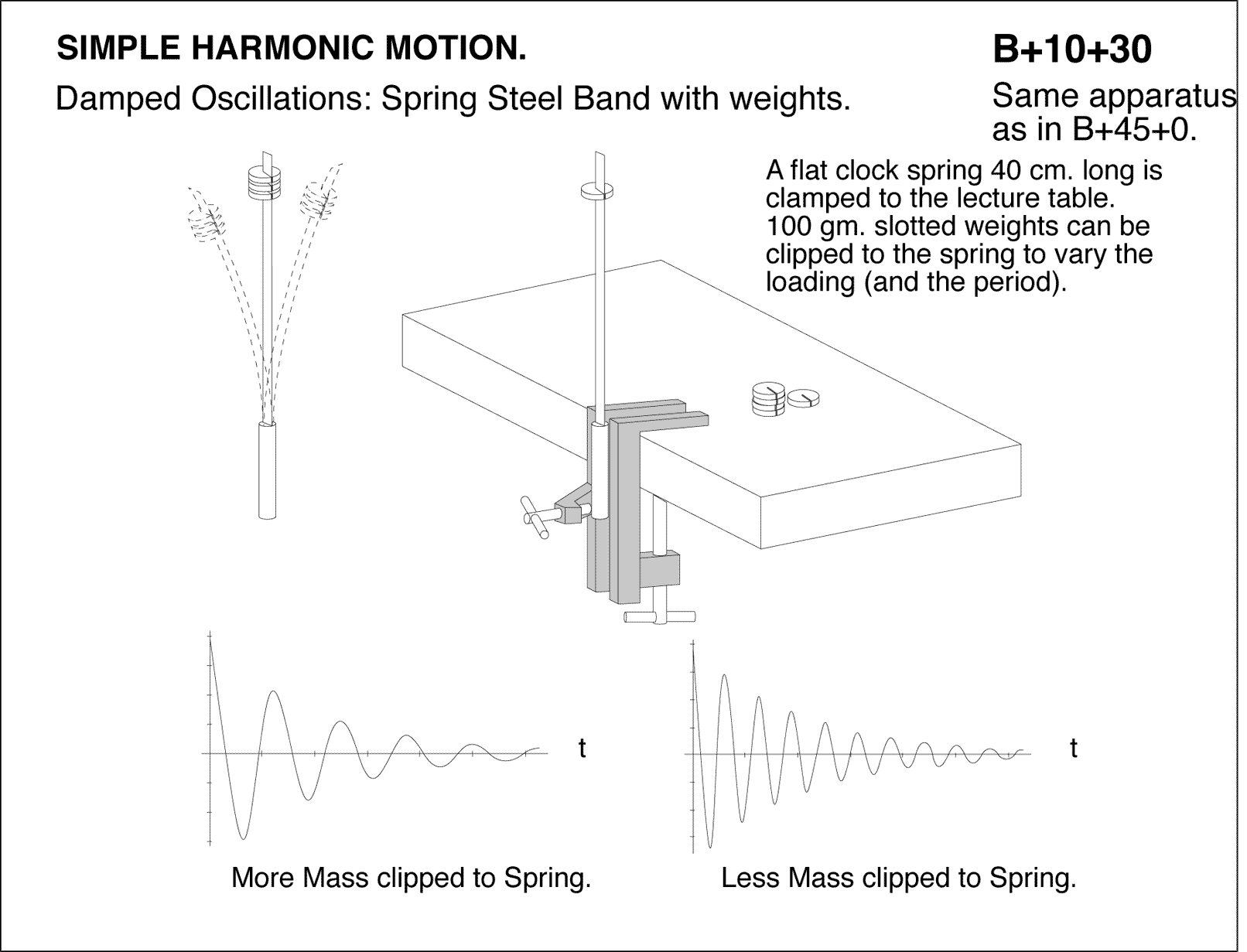

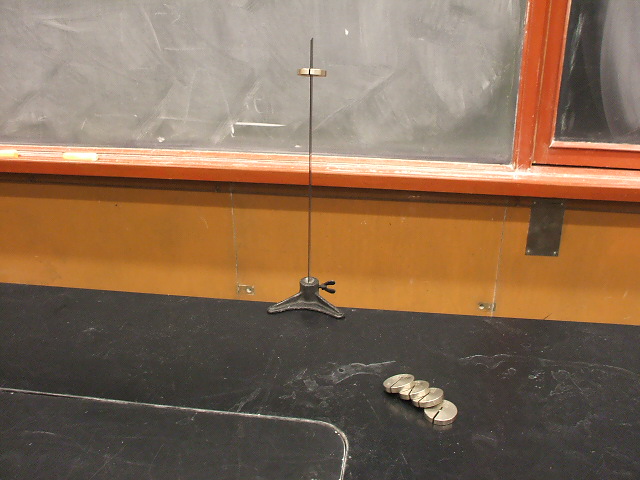

Damped oscillations: Flat steel spring with removable weights. A flat clock spring 40 cm. long is clamped to the lecture table. 100 gm. slotted weights can be clipped to the spring to vary the loading (and the period).
