Physical pendulum: Steel bar with two pivot points.
3A15.20 • B+10+10

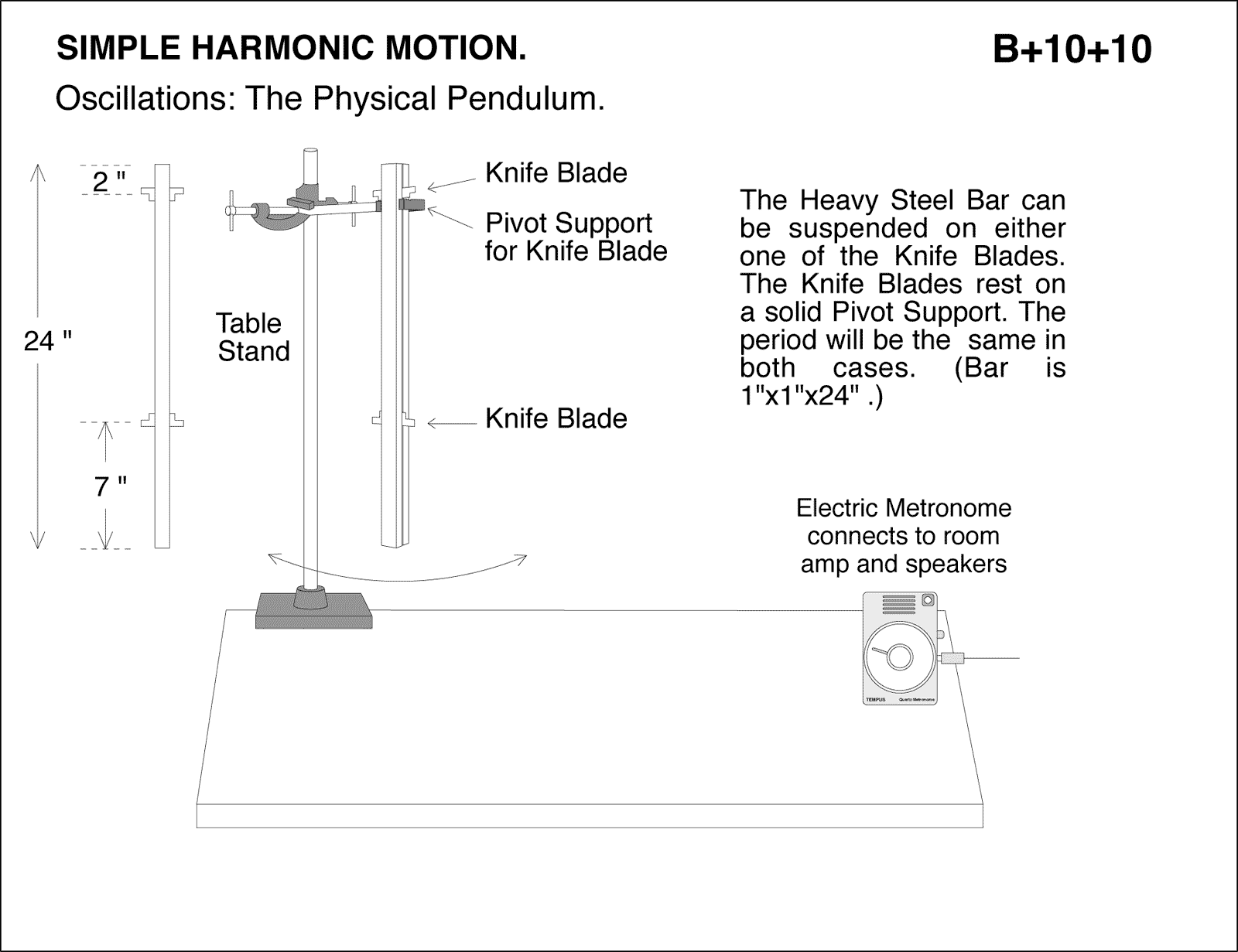

Oscillations: The Physical Pendulum. The heavy steel bar can be suspended on either one of the knife blades. The knife blades rest on a solid pivot support. The period will be the same in both cases.
