Large torsion pendulum with different diameter rods.
1Q10.20 • B+10+5

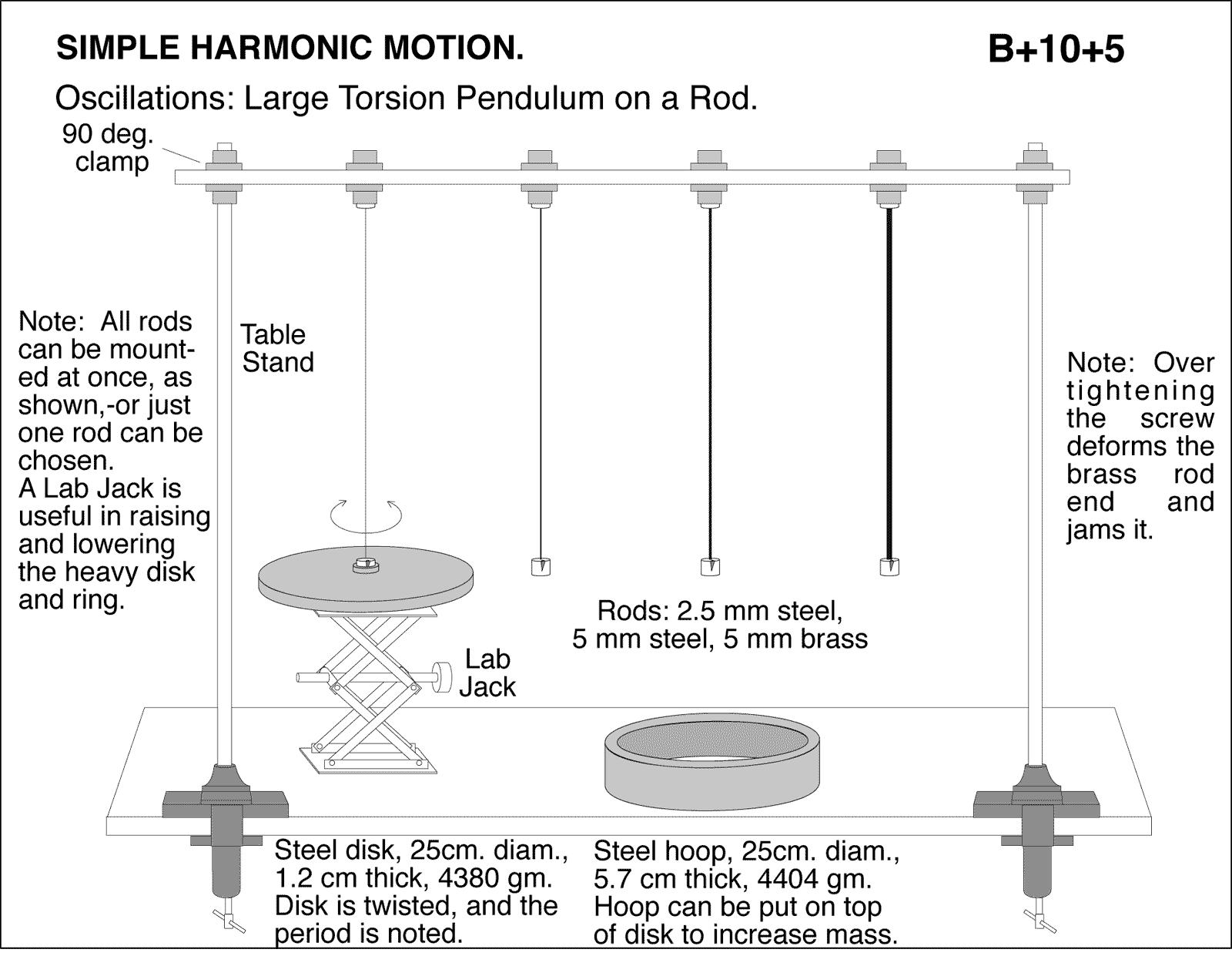

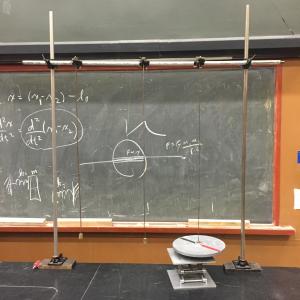

Large torsion pendulum with different diameter rods. Note: All rods can be mounted at once, as shown, or just one can be chosen. A Lab Jack is useful in raising and lowering the heavy disk and ring.
