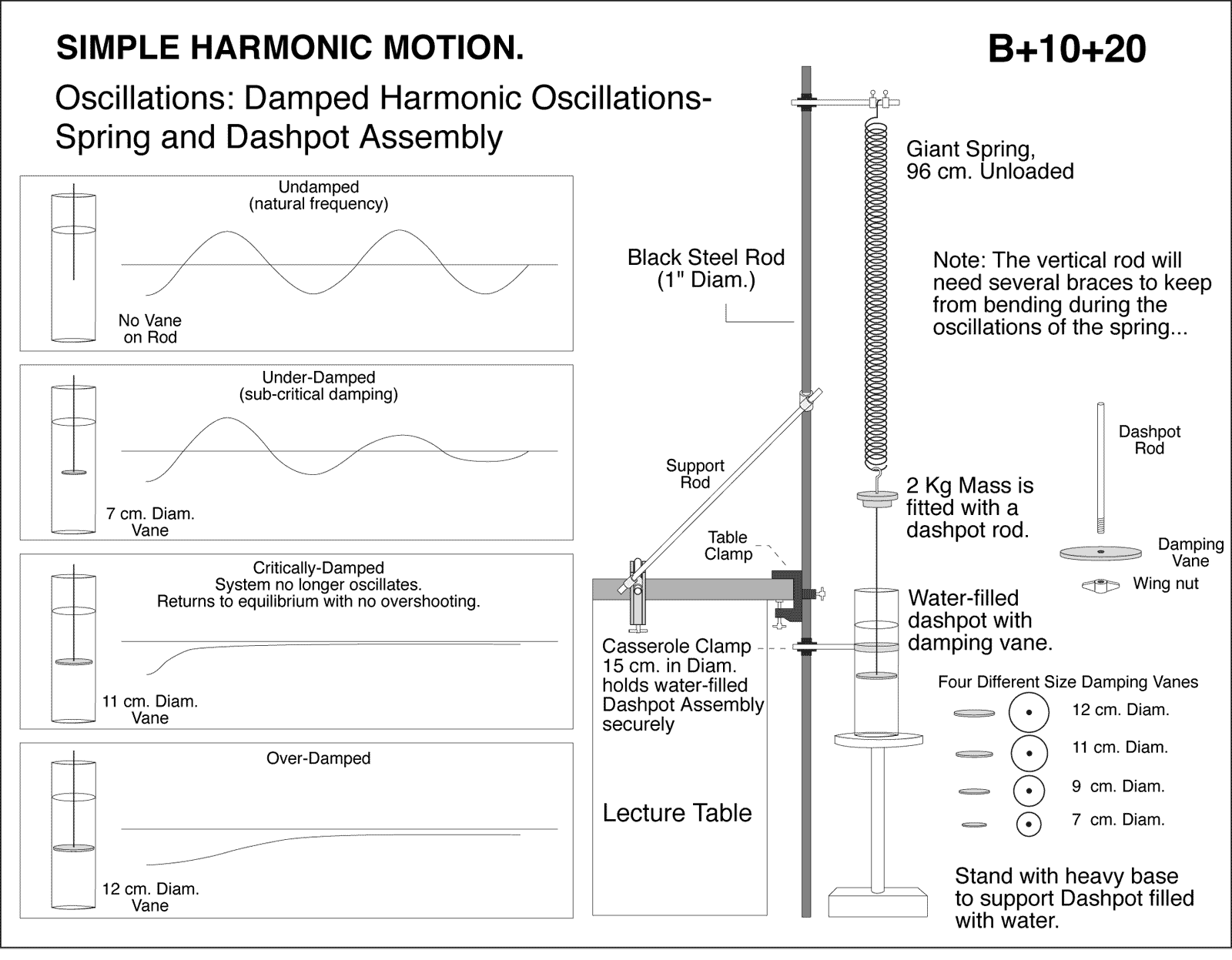

Large damped oscillator (mass on spring) with various damping disks.
3A50.10 • B+10+20
Large damped oscillator (mass on spring) with various damping disks. Note: The vertical rod will need several braces to keep from bending during the oscillations of the spring
