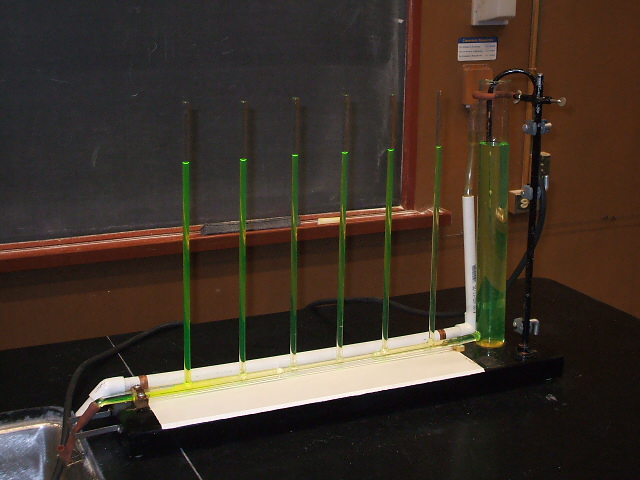

Glass standpipes with a constriction. Similar to C+25+10.
2C20.15 • C+25+11

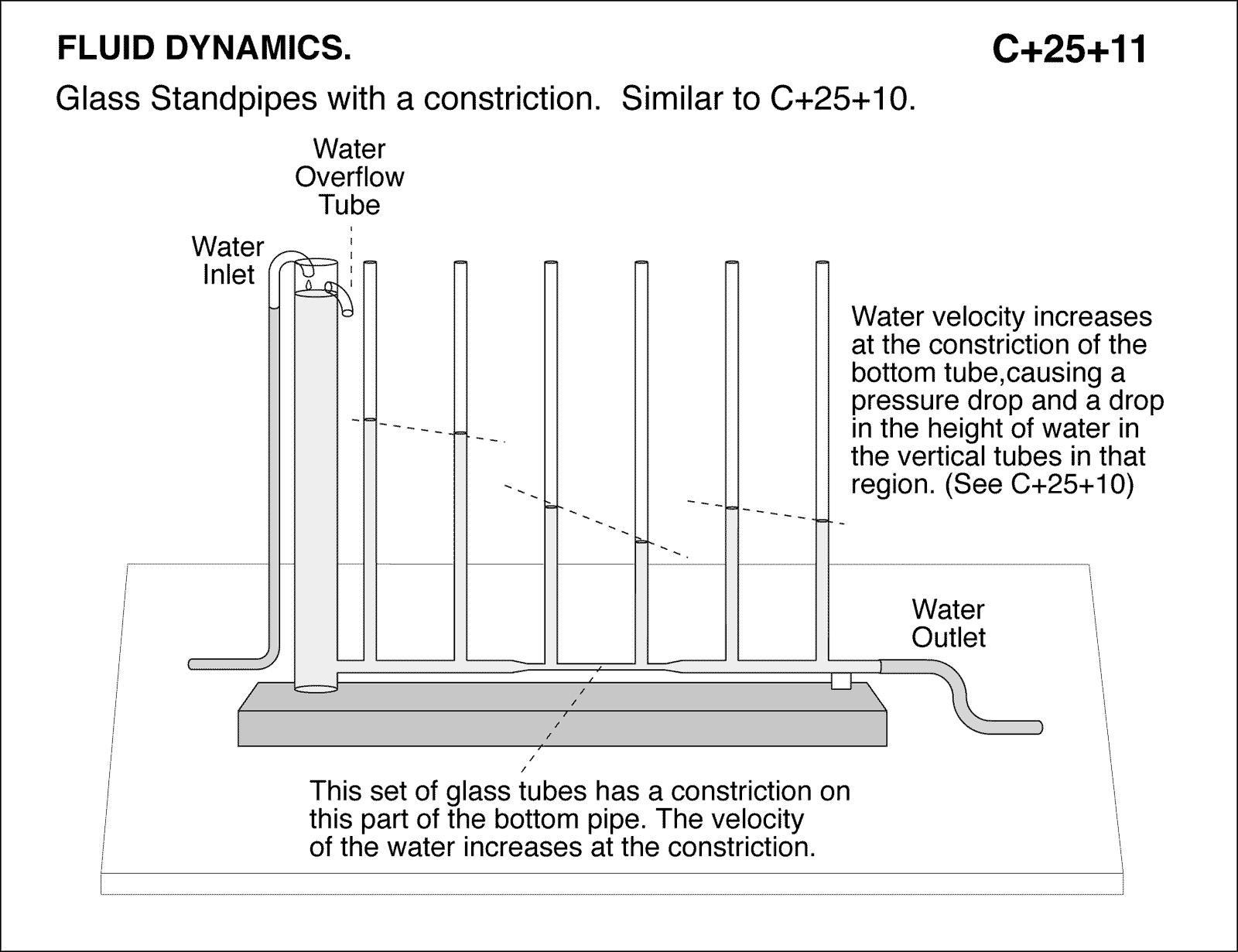

Glass standpipes with a constriction. Similar to C+25+10. his set of glass tubes has a constriction on this part of the bottom pipe. The velocity of the water increases at the constriction. Water velocity increases at the constriction of the bottom tube,causing a pressure drop and a drop in the height of water in the vertical tubes in that region.
