Hydraulic ram water pump, working model.

2B60.60 • C+25+45

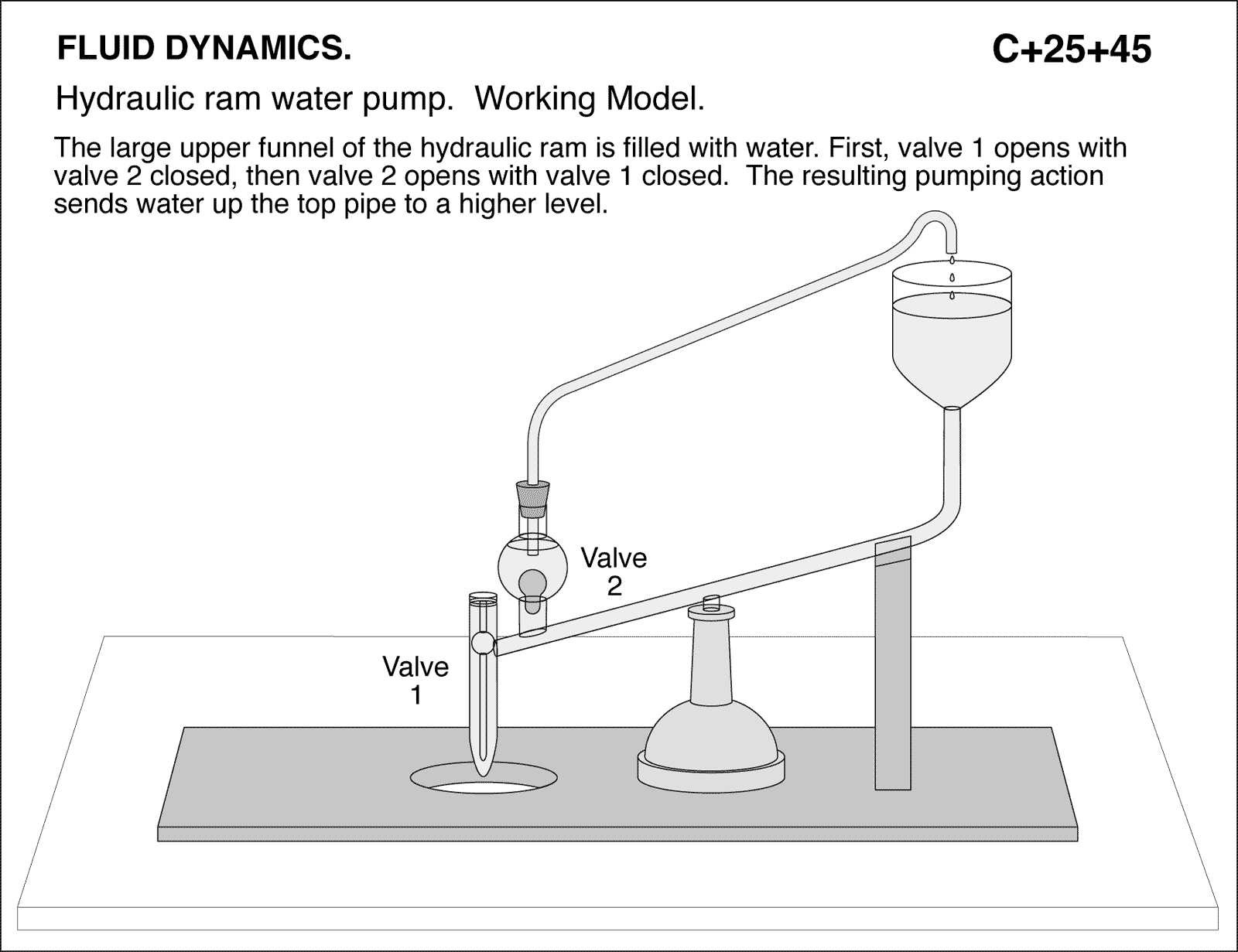

diagram for demo

Hydraulic ram water pump. Working Model. The large upper funnel of the hydraulic ram is filled with water. First, valve 1 opens with valve 2 closed, then valve 2 opens with valve 1 closed. The resulting pumping action sends water up the top pipe to a higher level. FLUID DYNAMICS.
