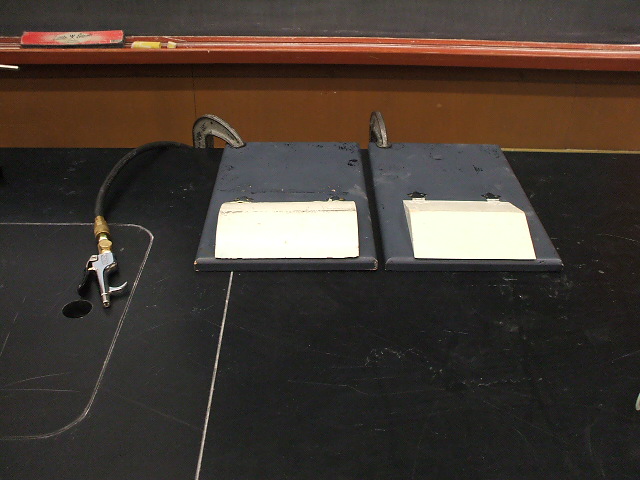

Two roof models, hinged, placed in wind stream.
2C20.53 • C+25+30

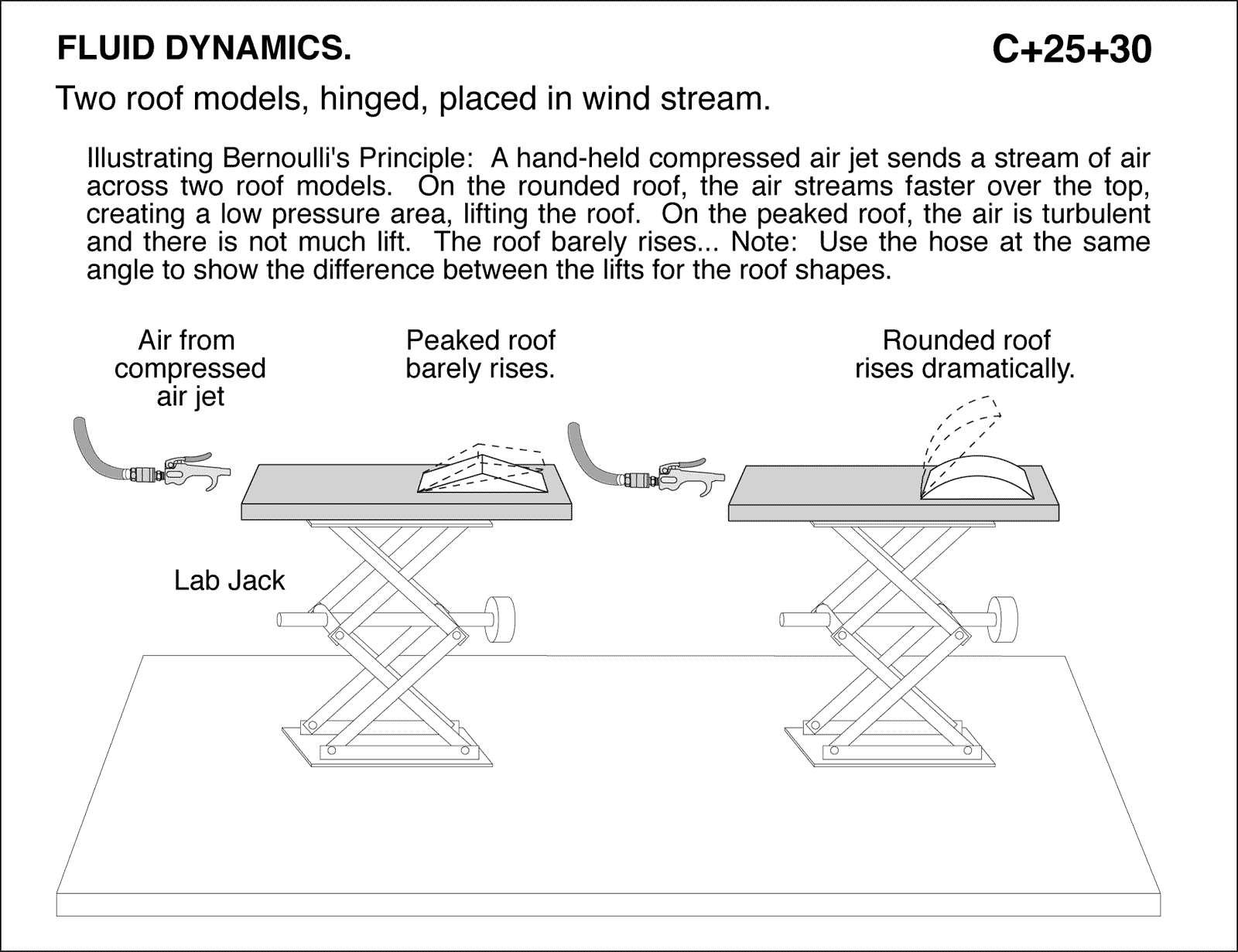

Two roof models, hinged, placed in wind stream. Illustrating Bernoulli's Principle: A hand-held compressed air jet sends a stream of air across two roof models. On the rounded roof, the air streams faster over the top, creating a low pressure area, lifting the roof. On the peaked roof, the air is turbulent and there is not much lift. The roof barely rises... Note: Use the hose at the same angle to show the difference between the lifts for the roof shapes. FLUID DYNAMICS
