Water in vertical standpipe with holes at different heights.

2C10.10 • C+25+40

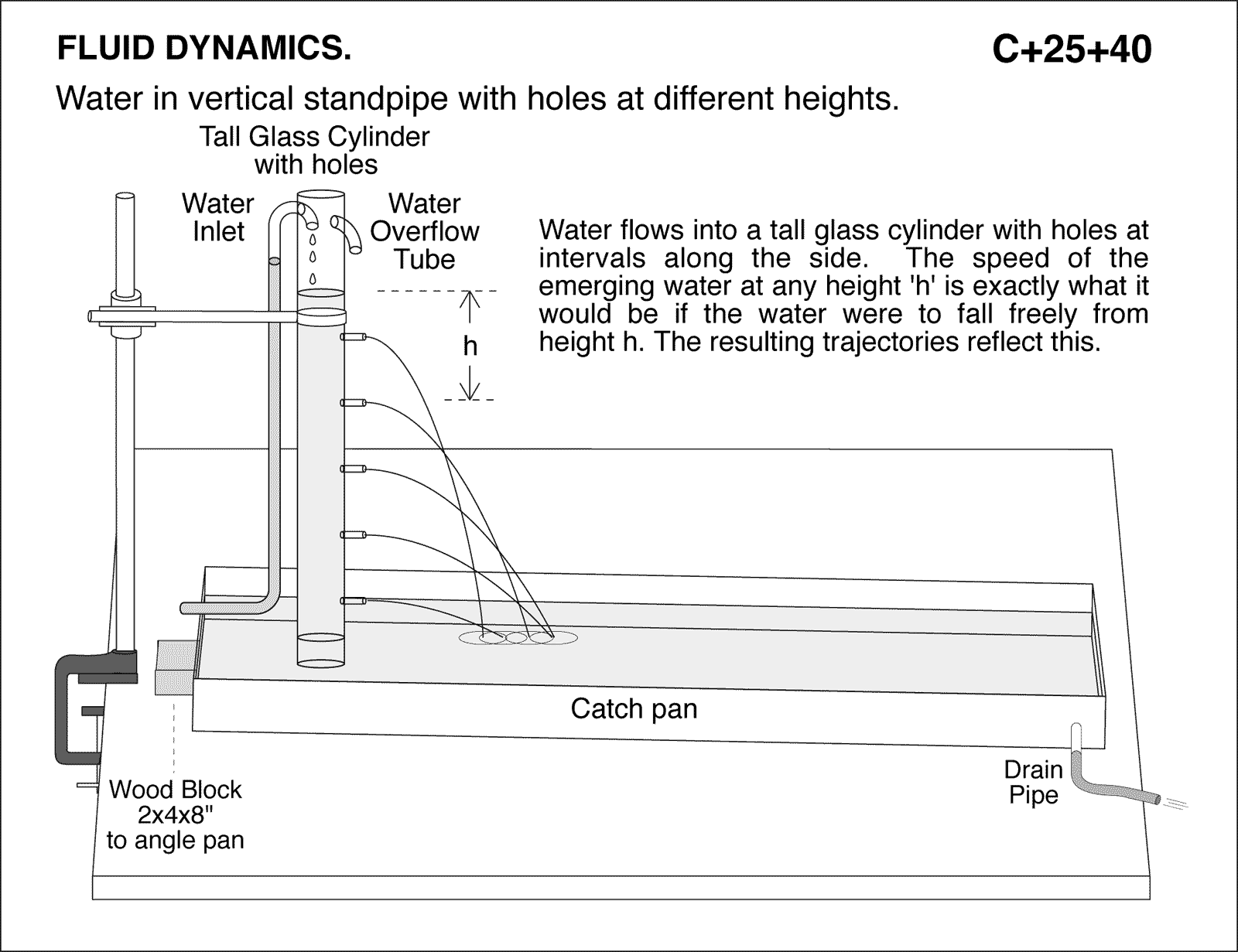

diagram for demo

Water in vertical standpipe with holes at different heights. Water flows into a tall glass cylinder with holes at intervals along the side. The speed of the emerging water at any height 'h' is exactly what it would be if the water were to fall freely from height h. The resulting trajectories reflect this. FLUID DYNAMICS.

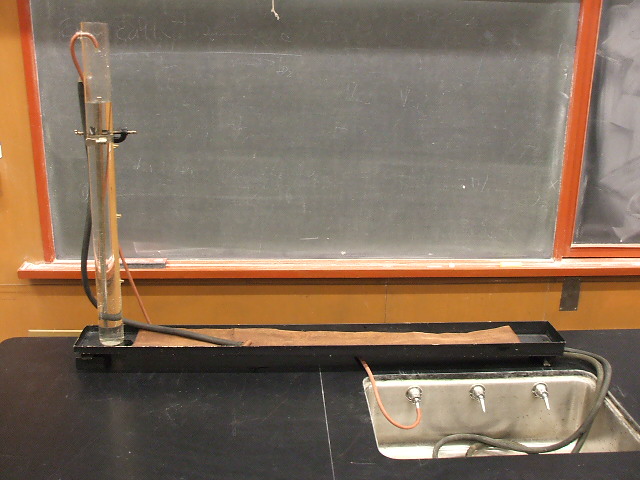

gallery
