Light the Match.
4B40.10 • C+65+2

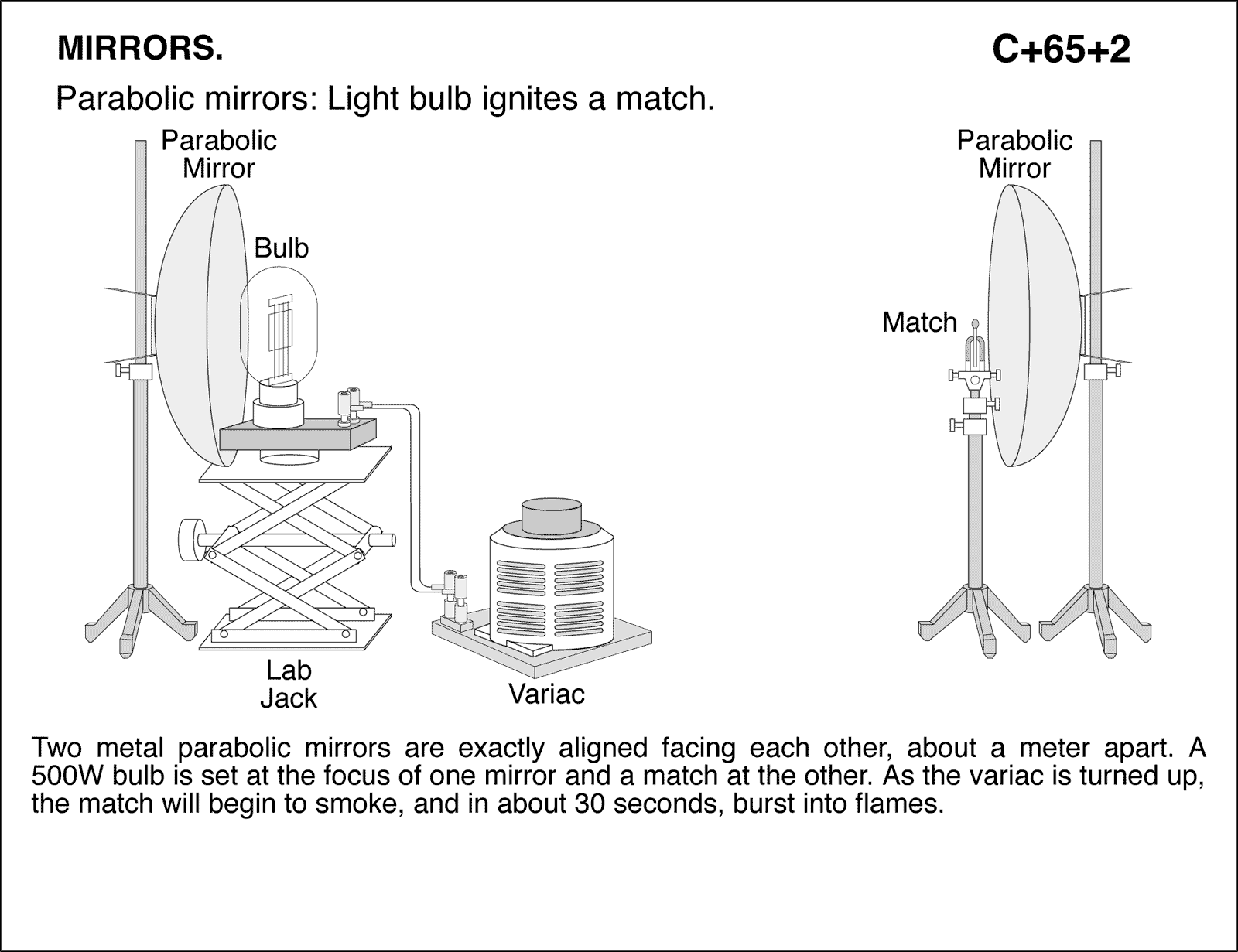

Parabolic mirrors: Light bulb ignites a match. Two metal parabolic mirrors are exactly aligned facing each other, about a meter apart. A 500W bulb is set at the focus of one mirror and a match at the other. As the variac is turned up, the match will begin to smoke, and in about 30 seconds, burst into flames. RADIATION
