Acoustic interference with Quincke (trombone) tube and sonalert.
3B55.40 • B+35+5

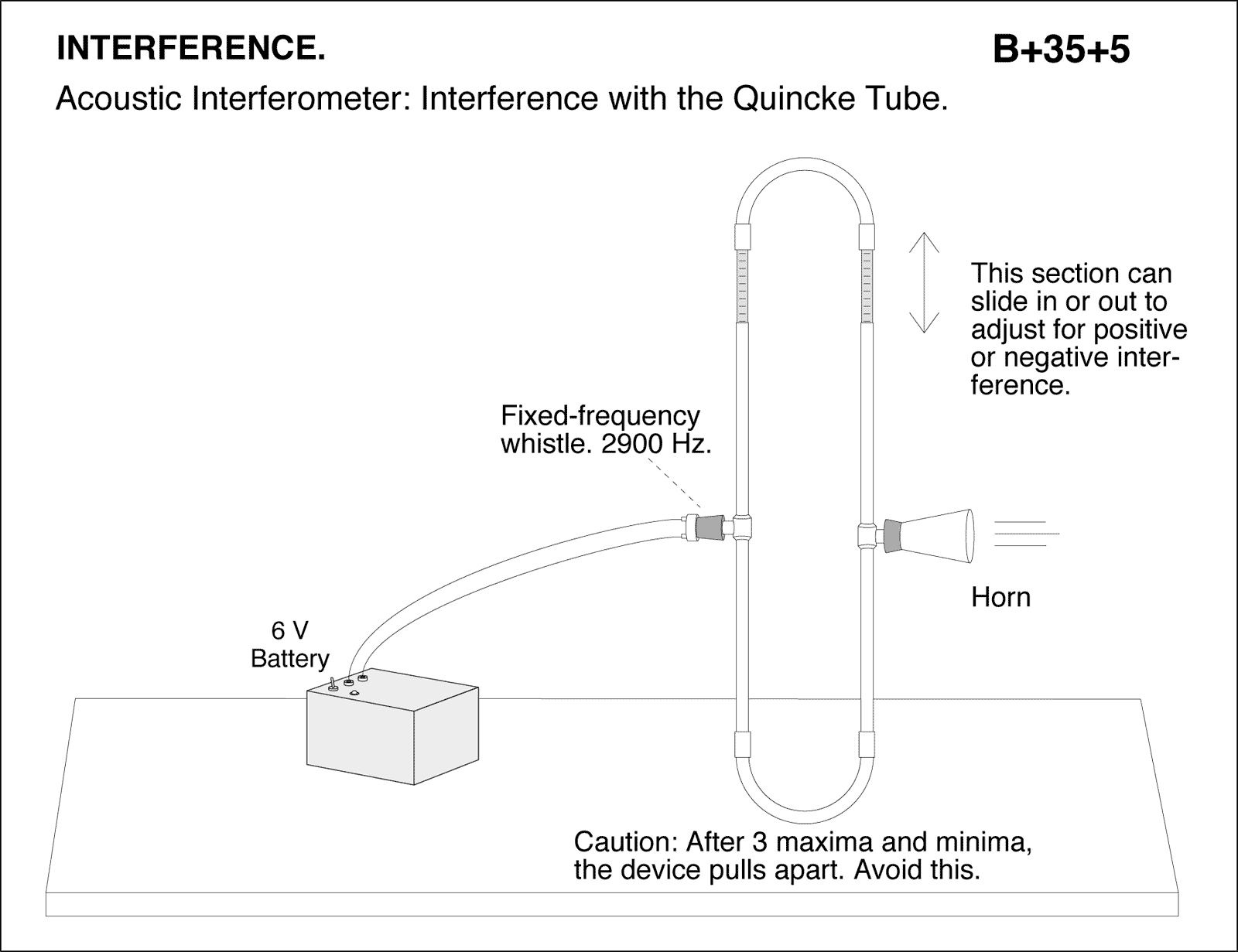

Acoustic Interferometer: Interference with the Quincke Tube. Top section can slide in or out to adjust for positive or negative interference. Caution: After 3 maxima and minima, the device pulls apart. Avoid this.
