Beats with tuning forks on tuned cavities.
3B60.10 • B+35+20

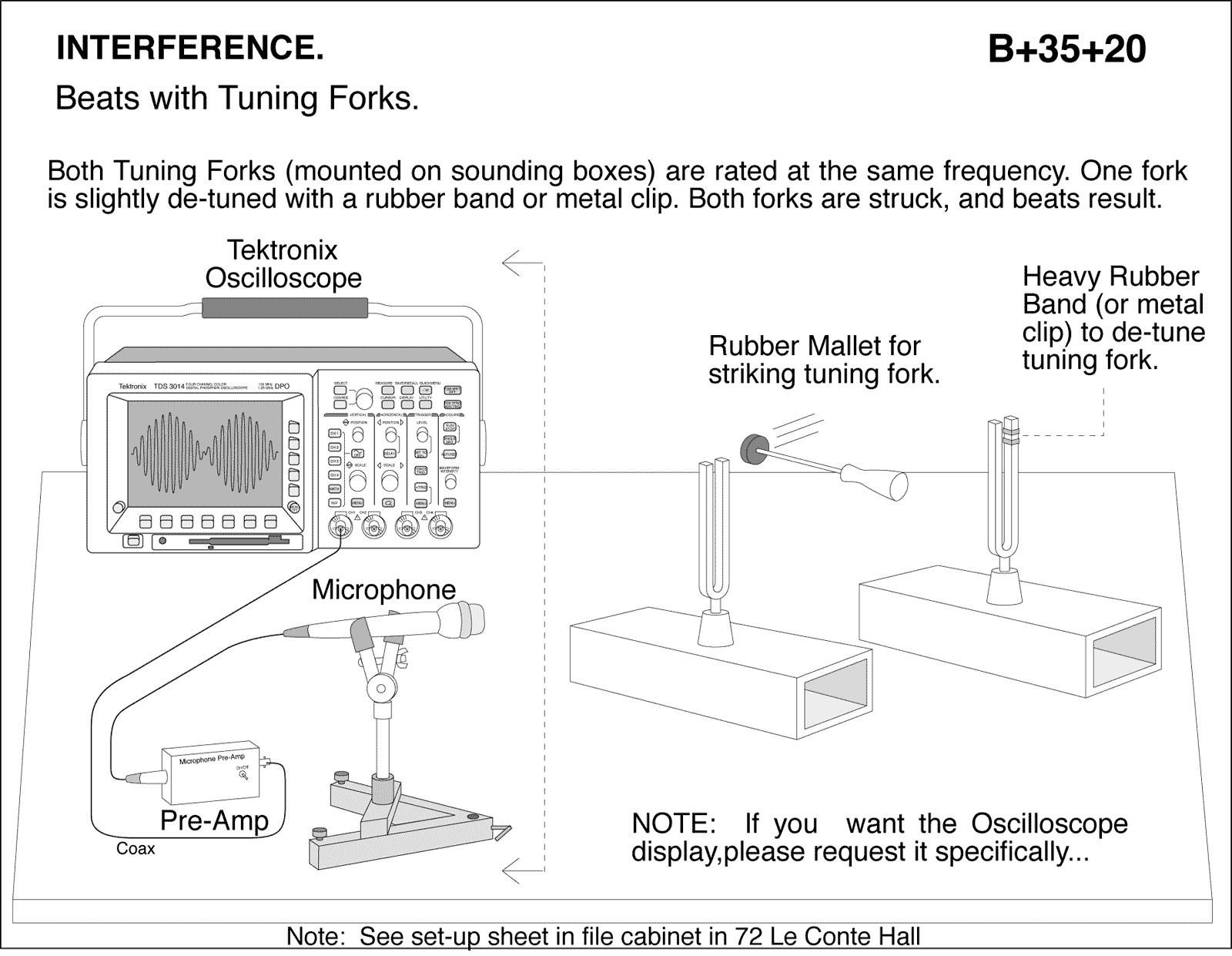

Beats with Tuning Forks. Both Tuning Forks (mounted on sounding boxes) are rated at the same frequency. One fork is slightly de-tuned with a rubber band or metal clip. Both forks are struck, and beats result. NOTE: If you want the Oscilloscope display,please request it specifically
