Pascal's vases: Water in removable vases with pressure gauge.

2B20.42 • C+30+50

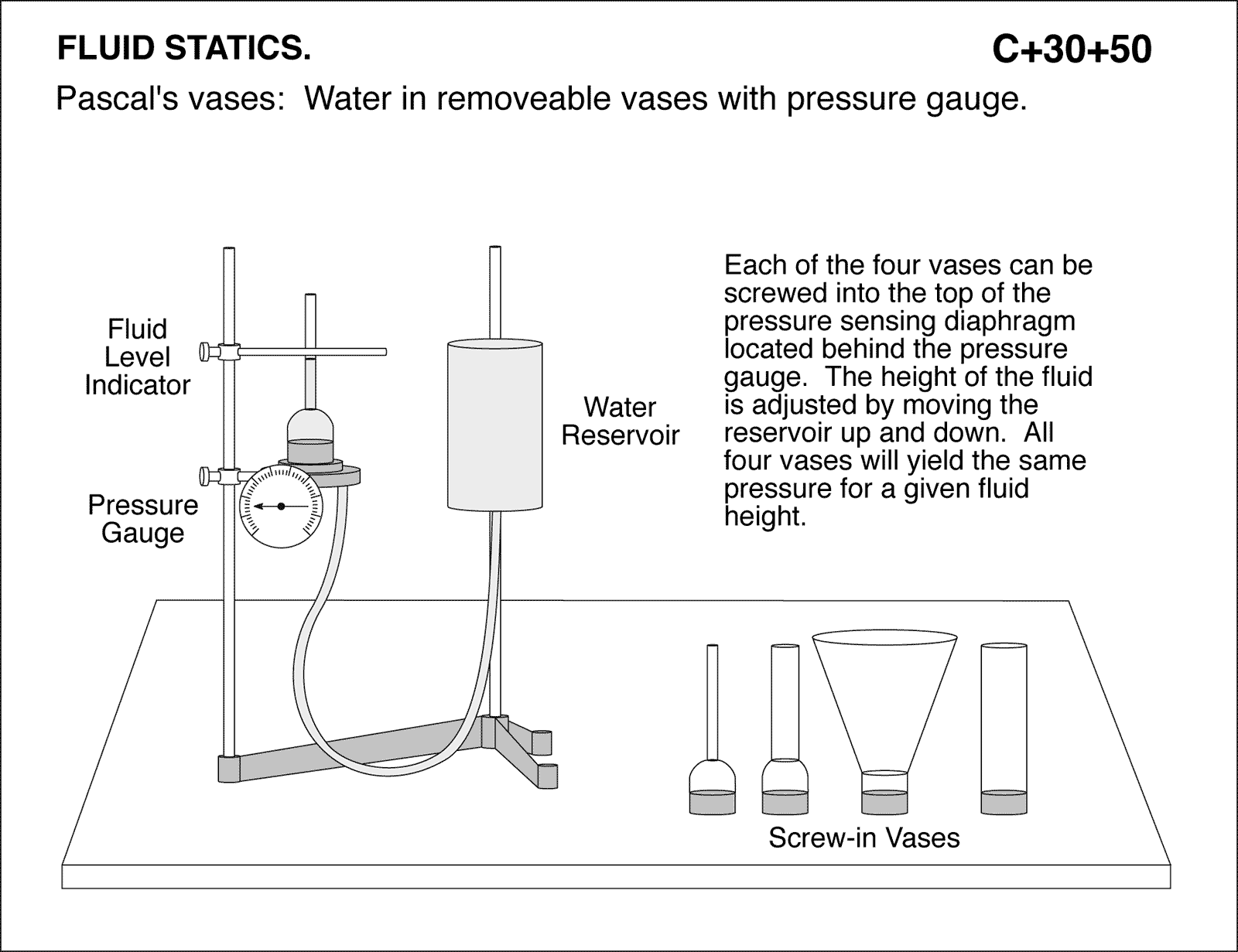

diagram for demo

Pascal's vases: Water in removeable vases with pressure gauge. Each of the four vases can be screwed into the top of the pressure sensing diaphragm located behind the pressure. The height of the fluid is adjusted by moving the reservoir up and down. All four vases will yield the same pressure for a given fluid height. FLUID STATICS.
