Energy Stored in Dielectric

• D+0+60

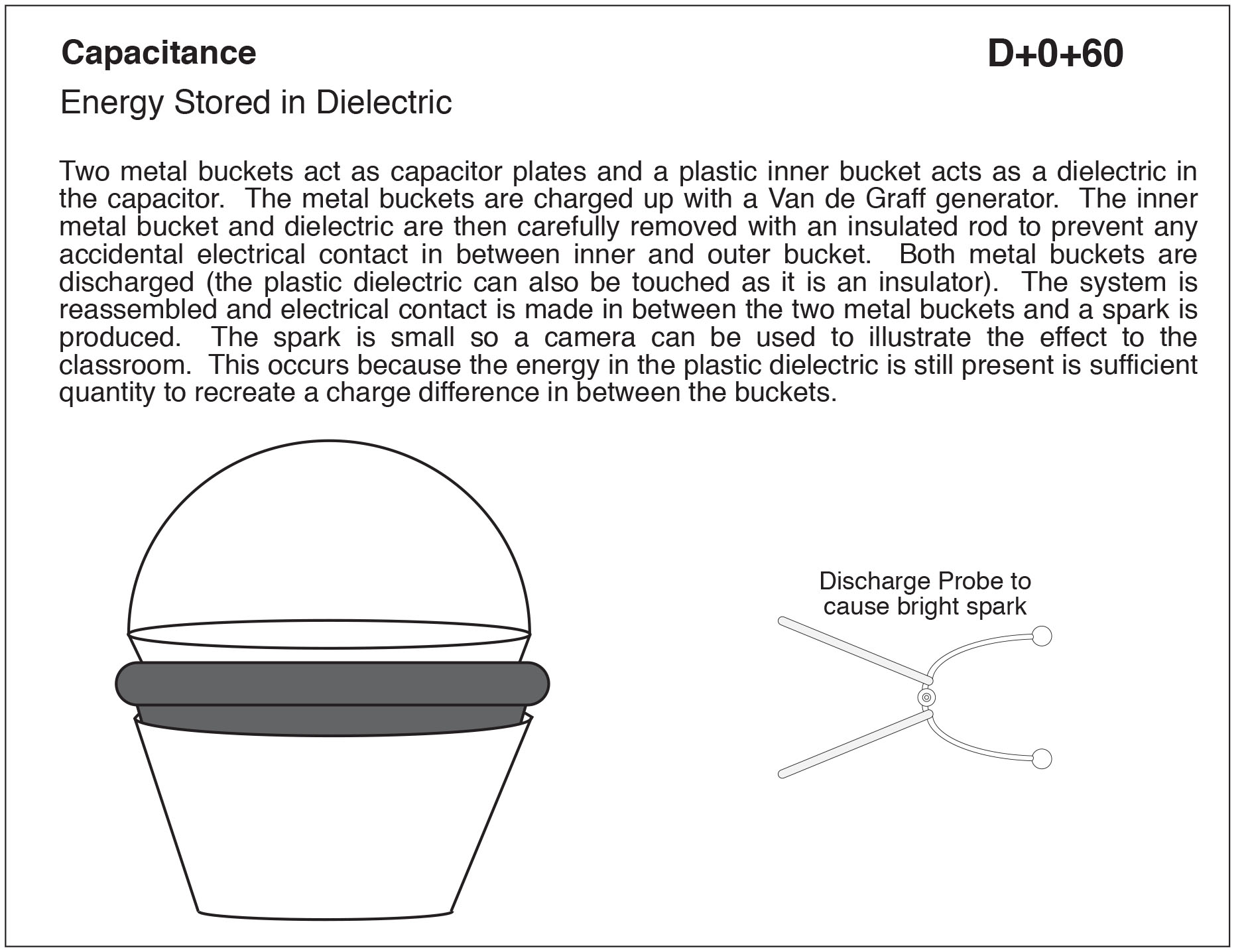

diagram for demo

Two metal buckets act as capacitor plates and a plastic inner bucket acts as a dielectric in the capacitor. The metal buckets are charged up with a Van de Graff generator. The inner metal bucket and dielectric are then carefully removed with an insulated rod to prevent any accidental electrical contact in between inner and outer bucket. Both metal buckets are discharged (the plastic dielectric can also be touched as it is an insulator). The system is reassembled and electrical contact is made in between the two metal buckets and a spark is produced. The spark is small so a camera can be used to illustrate the effect to the classroom. This occurs because the energy in the plastic dielectric is still present is sufficient quantity to recreate a charge difference in between the buckets.
