Various capacitors to show.

5C10.10 • D+0+2

diagram for demo

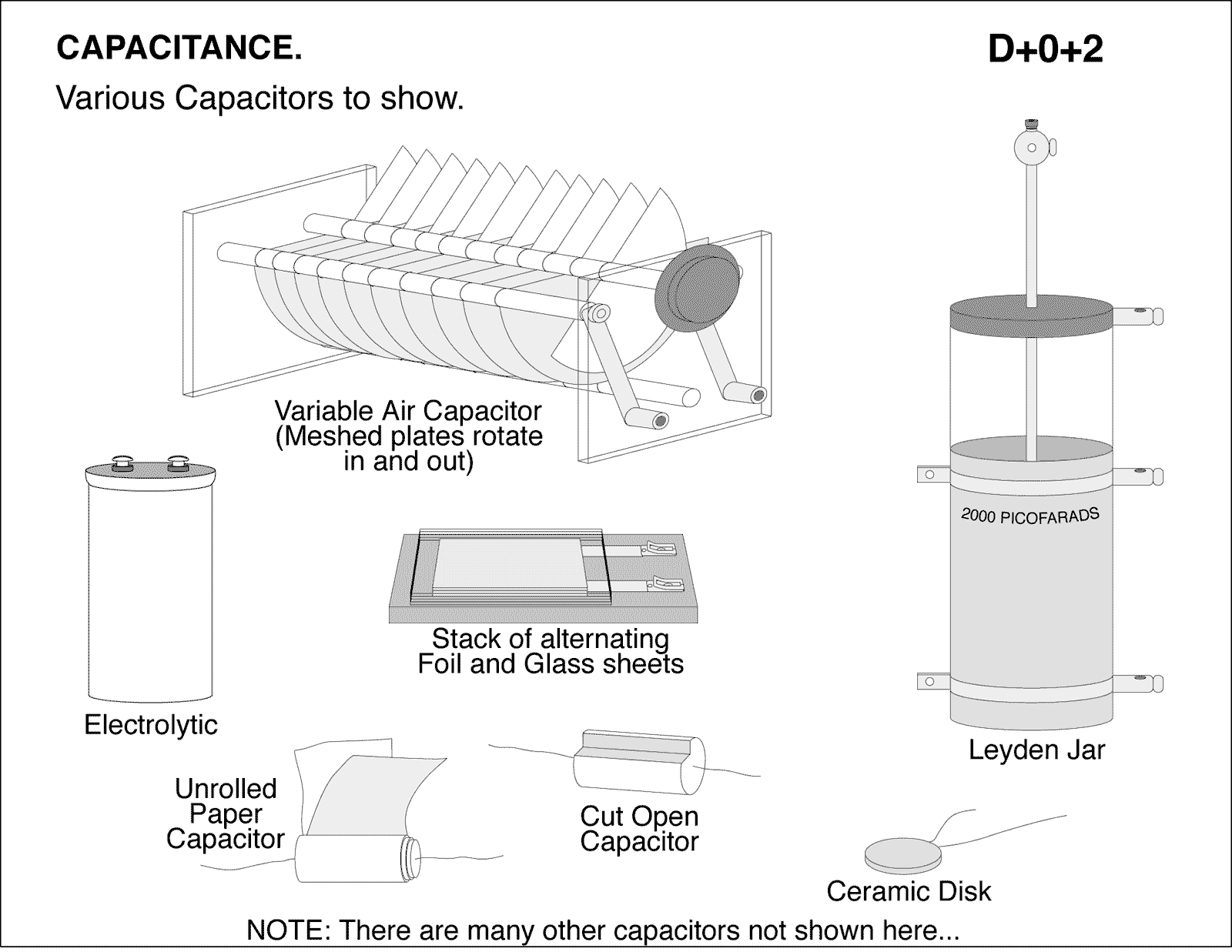

Various capacitors to show. NOTE: There are many other capacitors not shown here... Electrolytic Cut Open Capacitor, Unrolled Paper Capacitor Variable Air Capacitor (Meshed plates rotate in and out), Leyden Jar Ceramic Disk Stack of alternating Foil, and Glass sheets CAPACITANCE.
