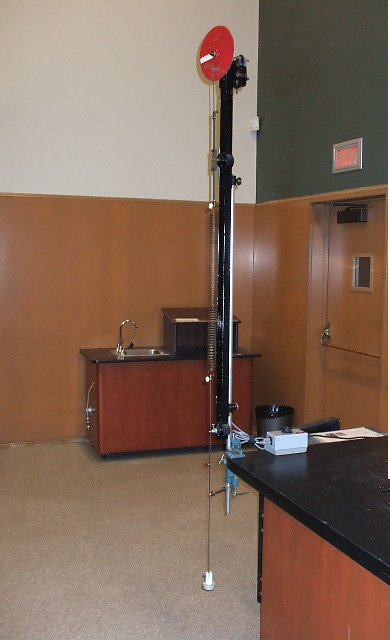

Driven harmonic oscillator: Motor driven mass on spring.
3A60.40 • B+20+0

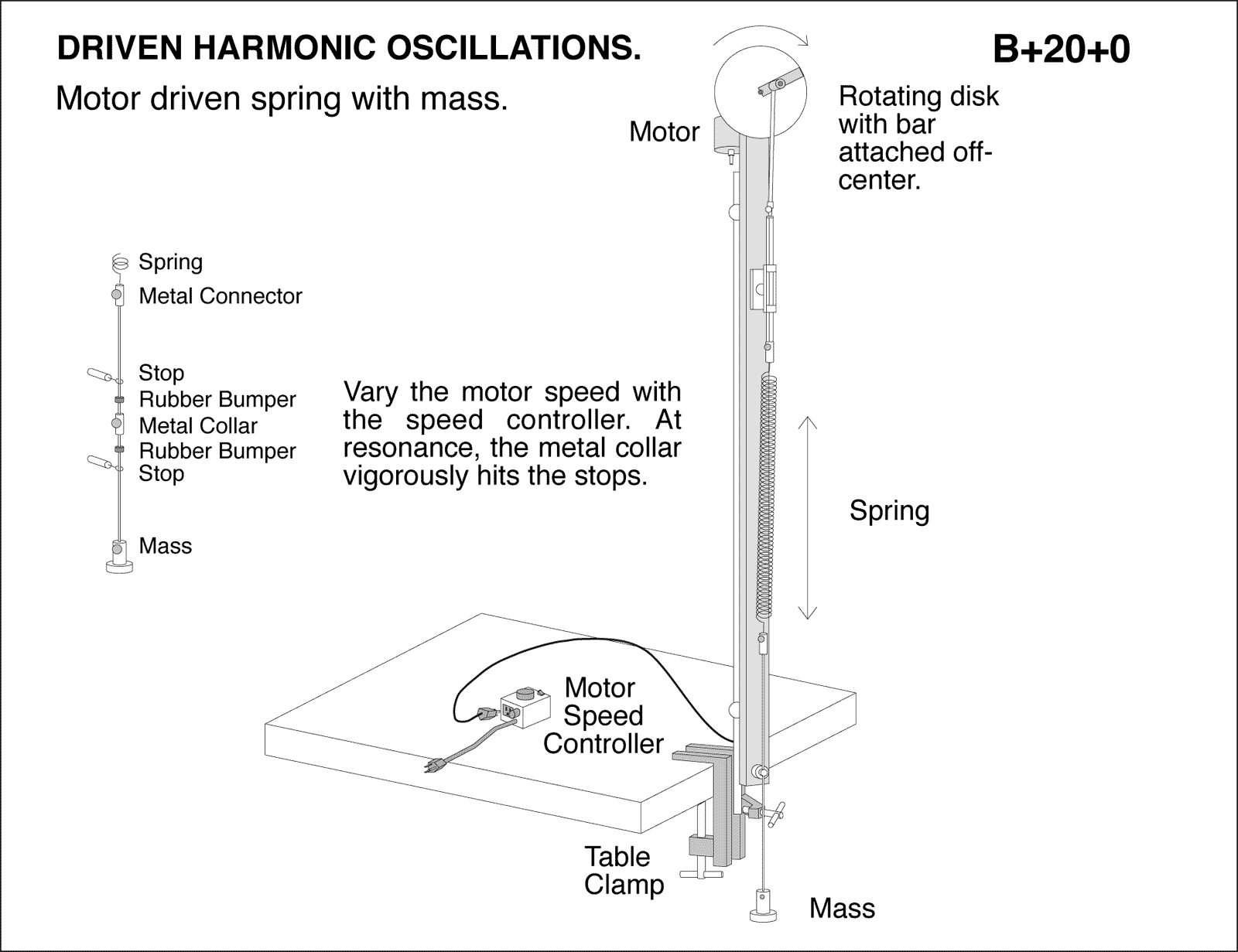

Driven harmonic oscillator: Motor driven spring with mass. Vary the motor speed with the speed controller. At resonance, the metal collar vigorously hits the stop.
