One tuning fork with tuned cavity, drives another.

3B70.10 • B+20+15

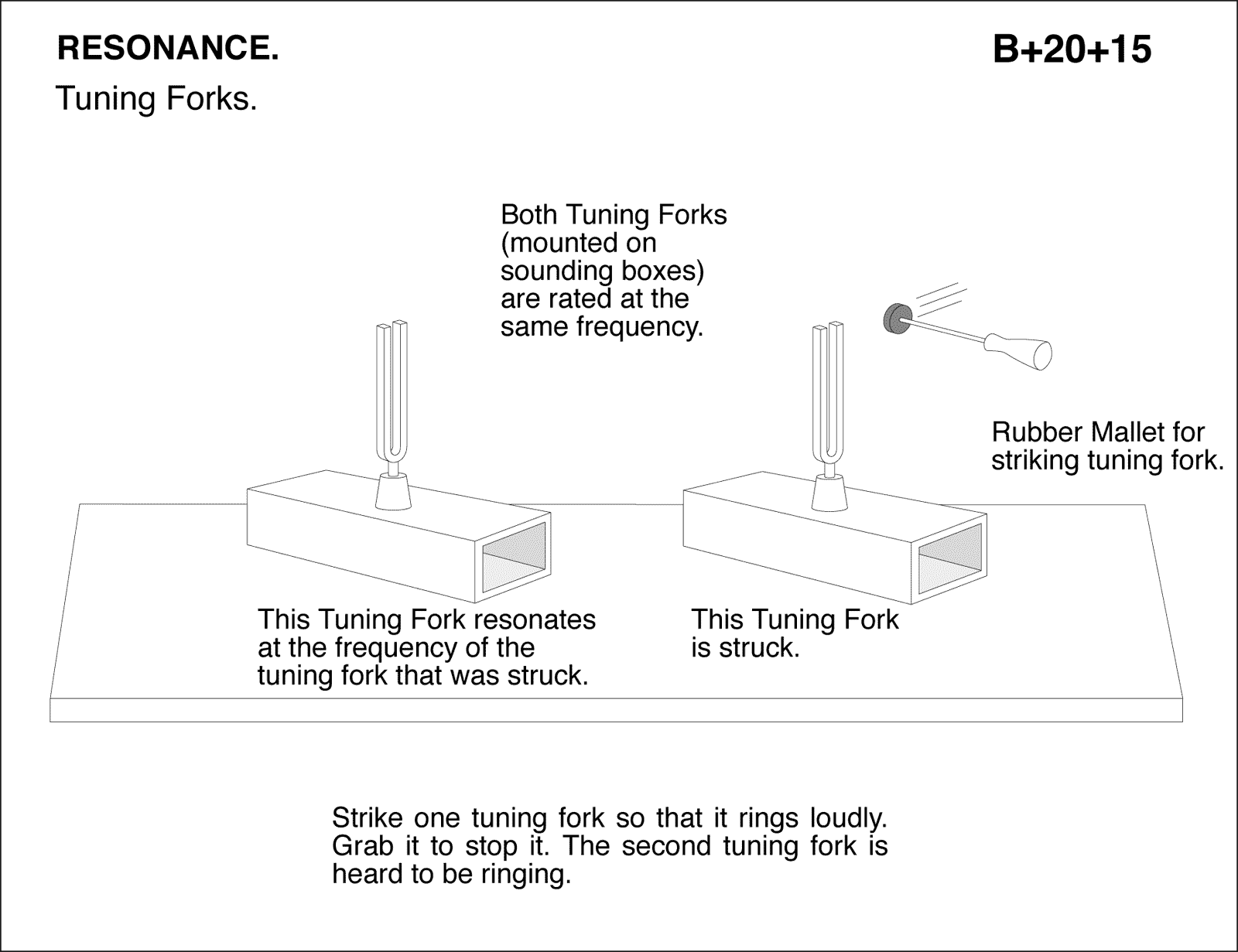

diagram for demo

Tuning Forks. Both Tuning Forks (mounted on sounding boxes) are rated at the same frequency. Strike one tuning fork so that it rings loudly. Grab it to stop it. The second tuning fork is heard to be ringing.
