Two pendulums on a frame of flexible steel.

3A70.20 • B+15+10

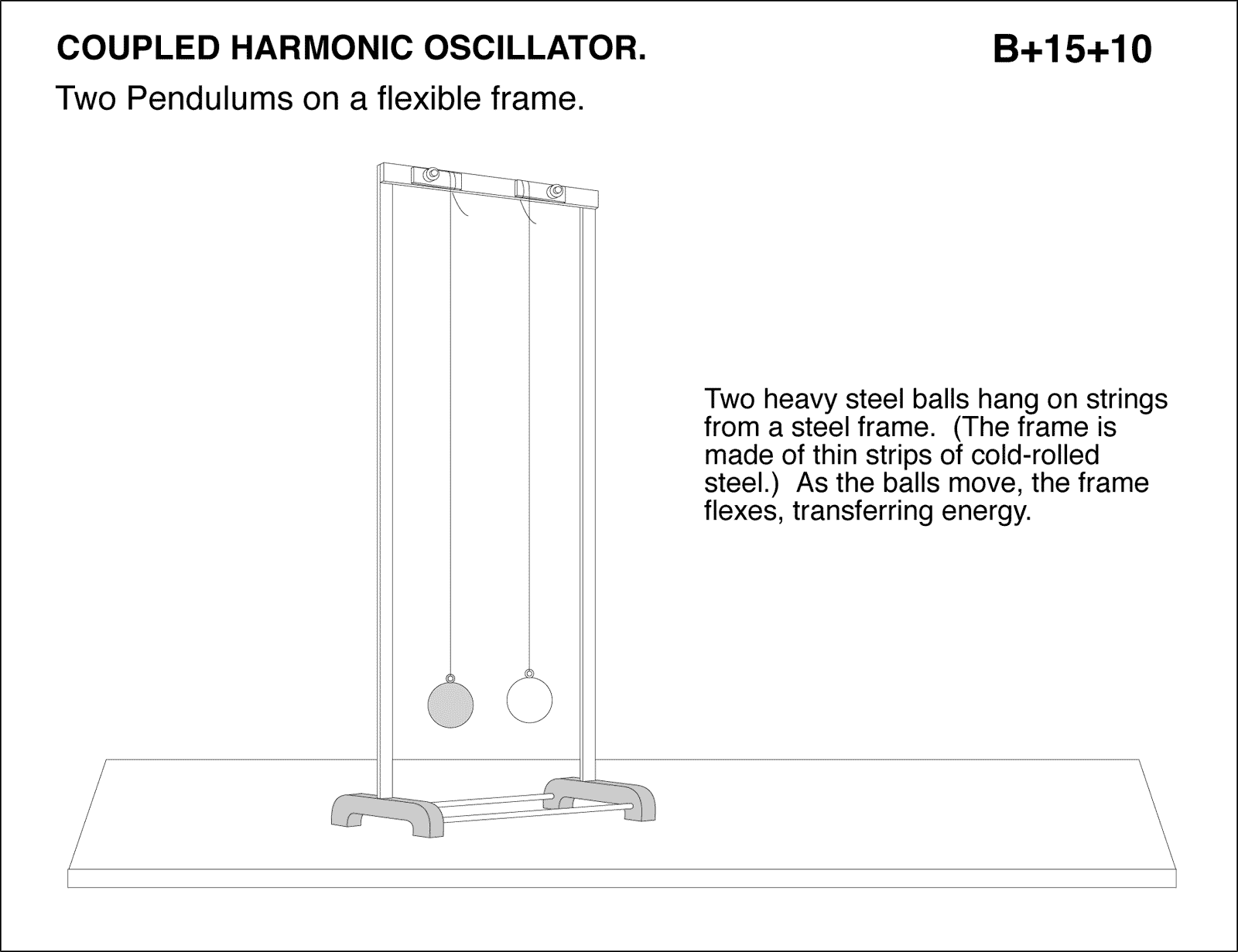

diagram for demo

Two pendulums on a flexible frame. Two heavy steel balls hang on strings from a steel frame. (The frame is made of thin strips of cold rolled steel). As the balls move, the frame flexes, transferring energy.
