Mavometer: Ammeter / voltmeter / galvanometer

• D+40+4

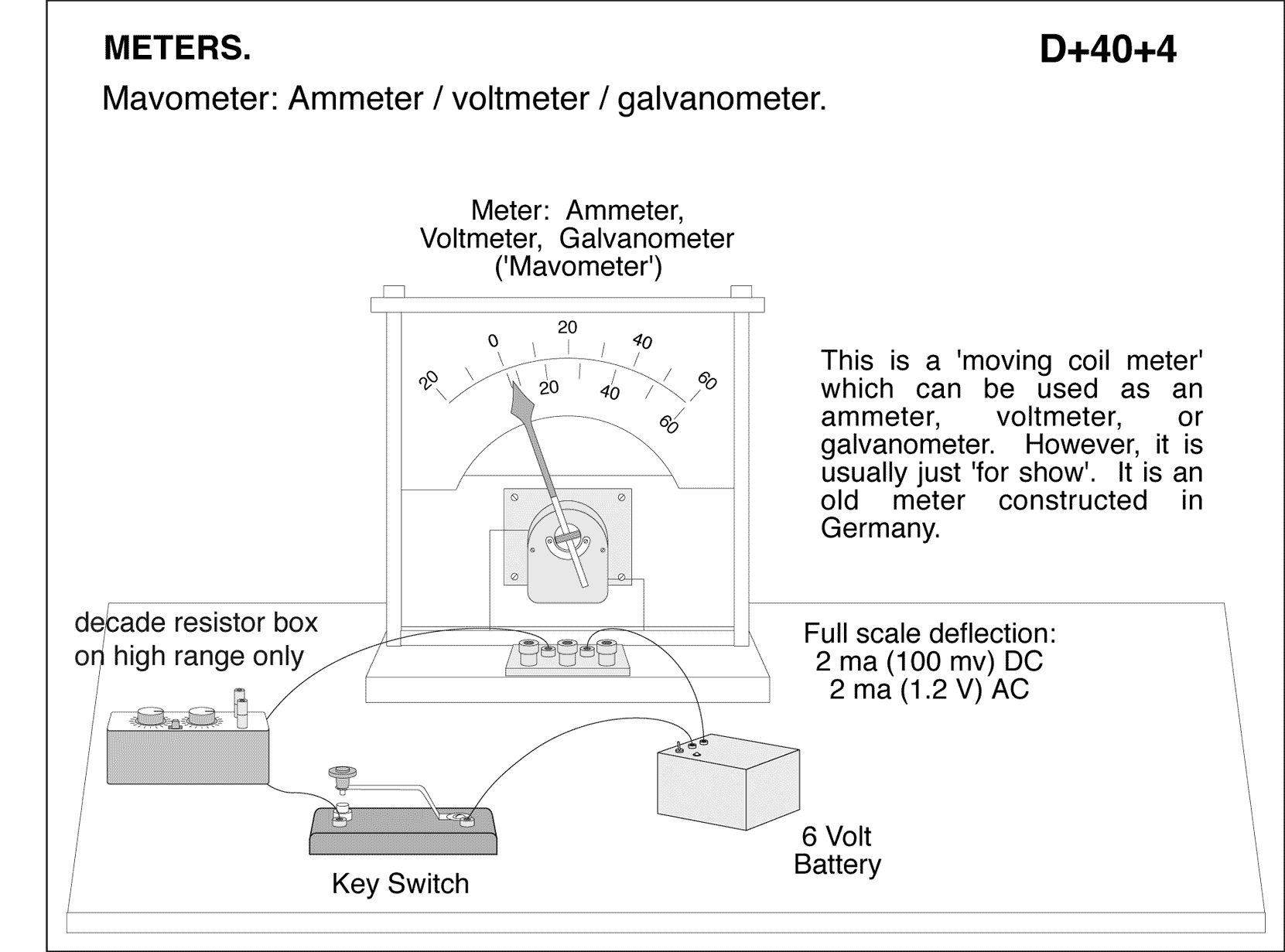

diagram for demo

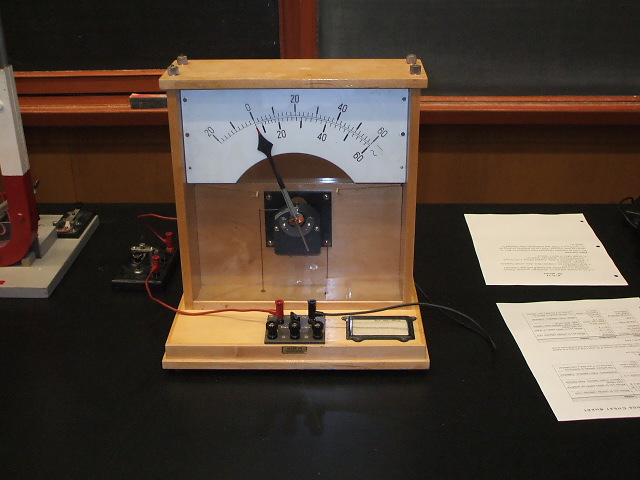

Mavometer: Ammeter / voltmeter / galvanometer. This is a 'moving coil meter' which can be used as an ammeter, voltmeter, or galvanometer. However, it is usually just 'for show'. It is an old meter constructed in Germany.

gallery
