Large compass needle on stand.
5H10.11 • D+30+1

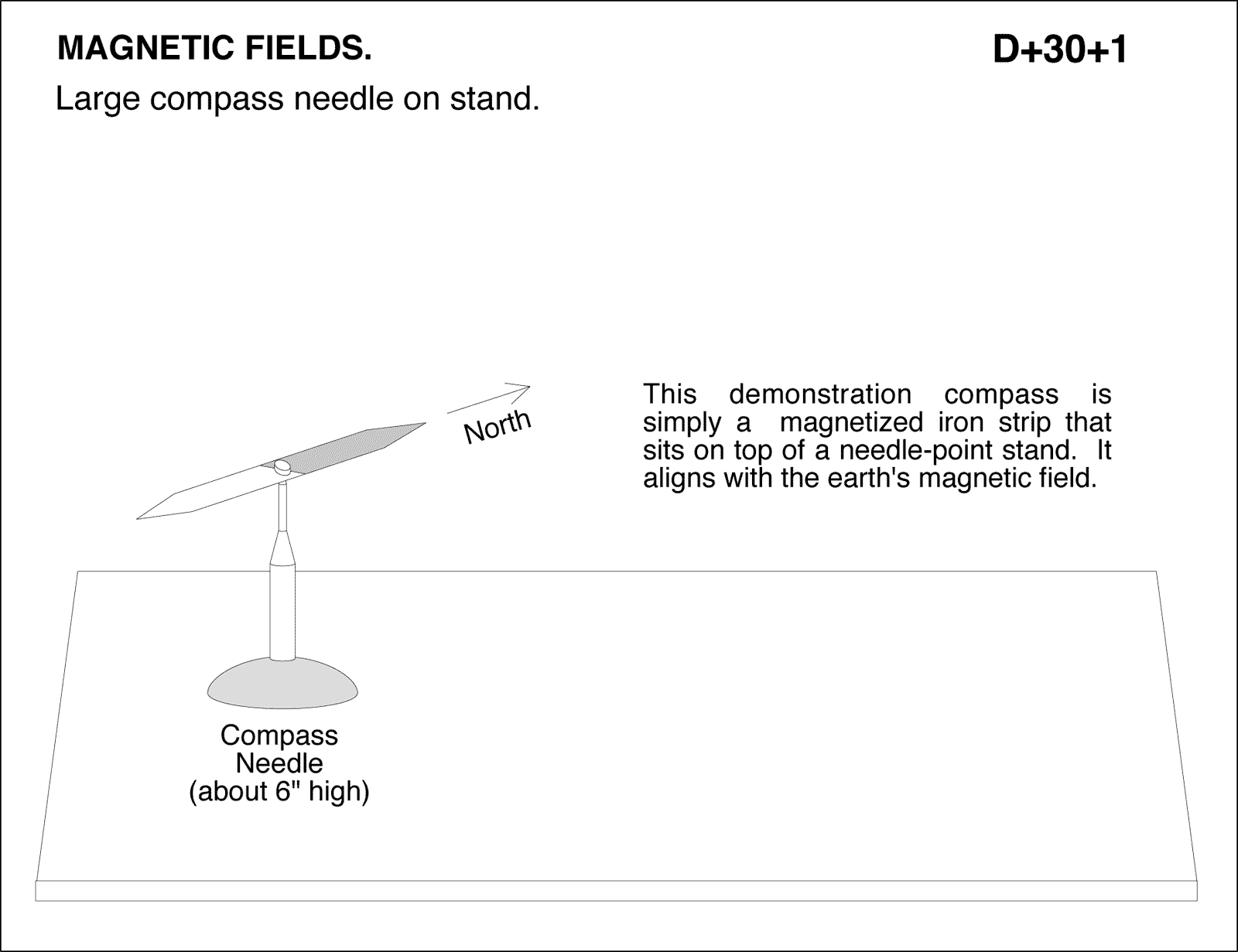

Large compass needle on stand. This demonstration compass is simply a magnetized iron strip that sits on top of a needle-point stand. It aligns with the earth's magnetic field. North Compass Needle (about 6" high)
