Dropped and shot balls hit bench simultaneously.

1D60.20 • A+50+0

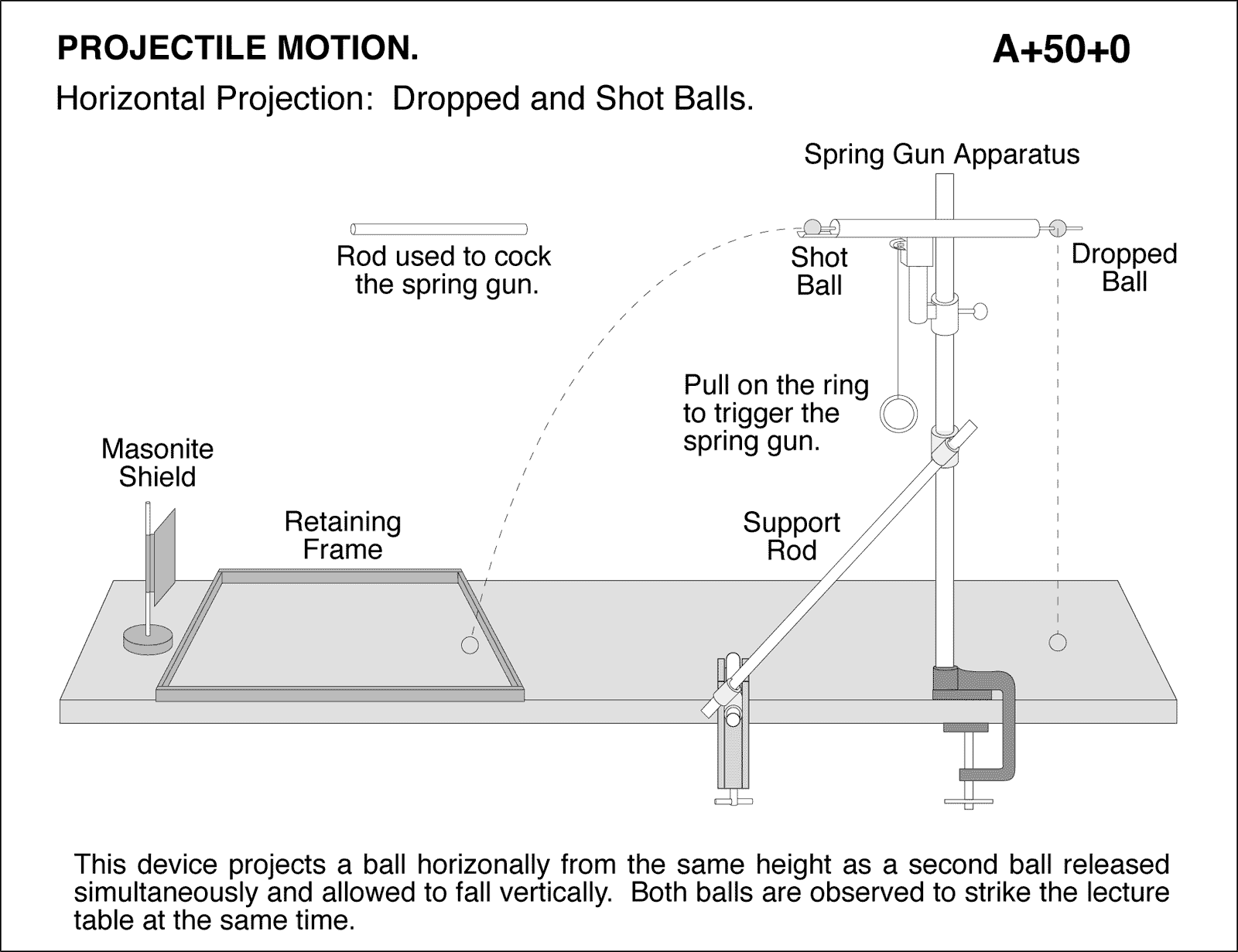

diagram for demo

Horizontal Projection: Dropped and Shot Balls. Pull on the ring to trigger the spring gun. Support Rod Rod used to cock the spring gun. This device projects a ball horizonally from the same height as a second ball released simultaneously and allowed to fall vertically. Both balls are observed to strike the lecture table at the same time.
