1N10.55 • D+5+24

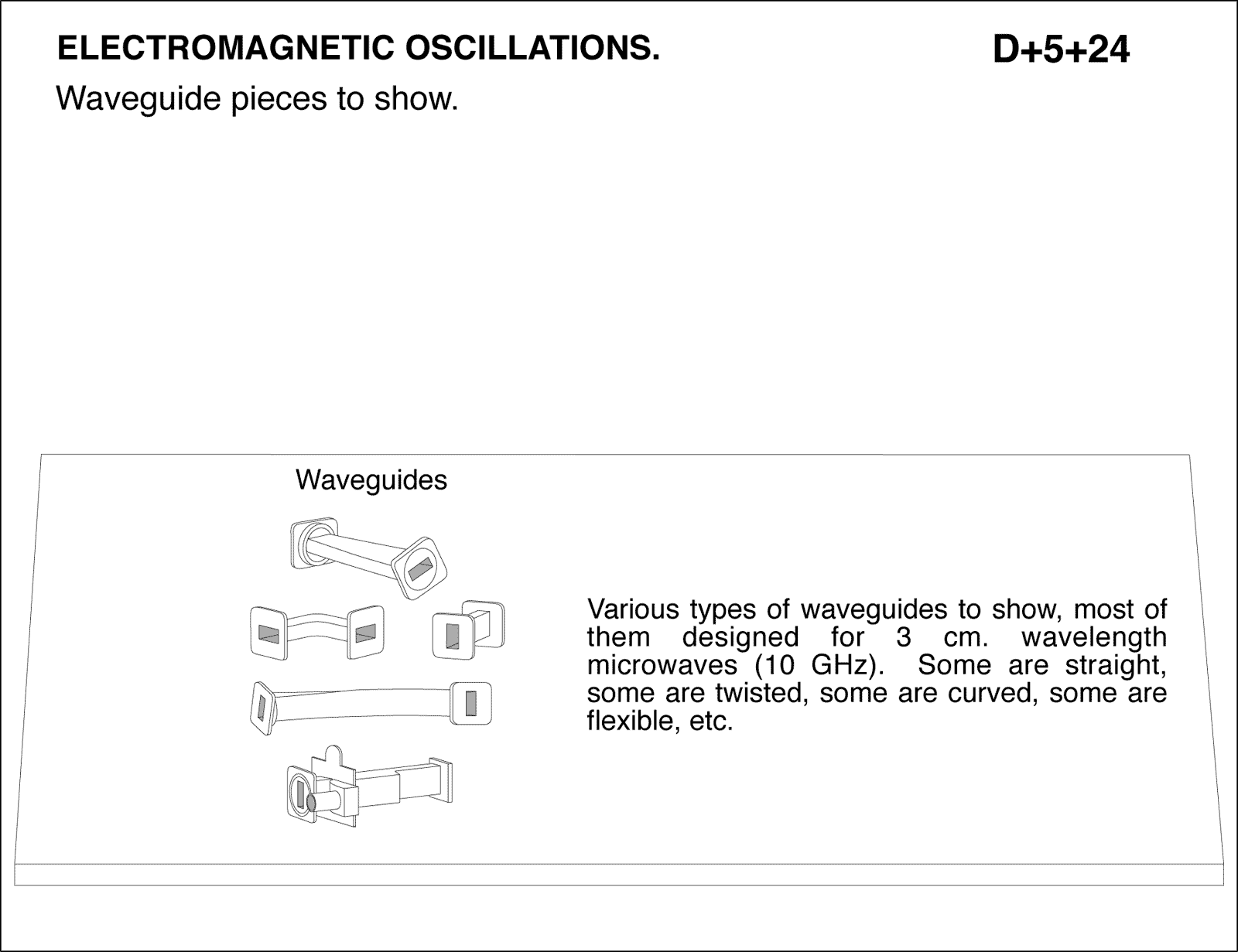

Waveguide pieces to show. Various types of waveguides to show, most of them designed for 3 cm. wavelength microwaves (10 GHz). Some are straight, some are twisted, some are curved, some are flexible, etc
