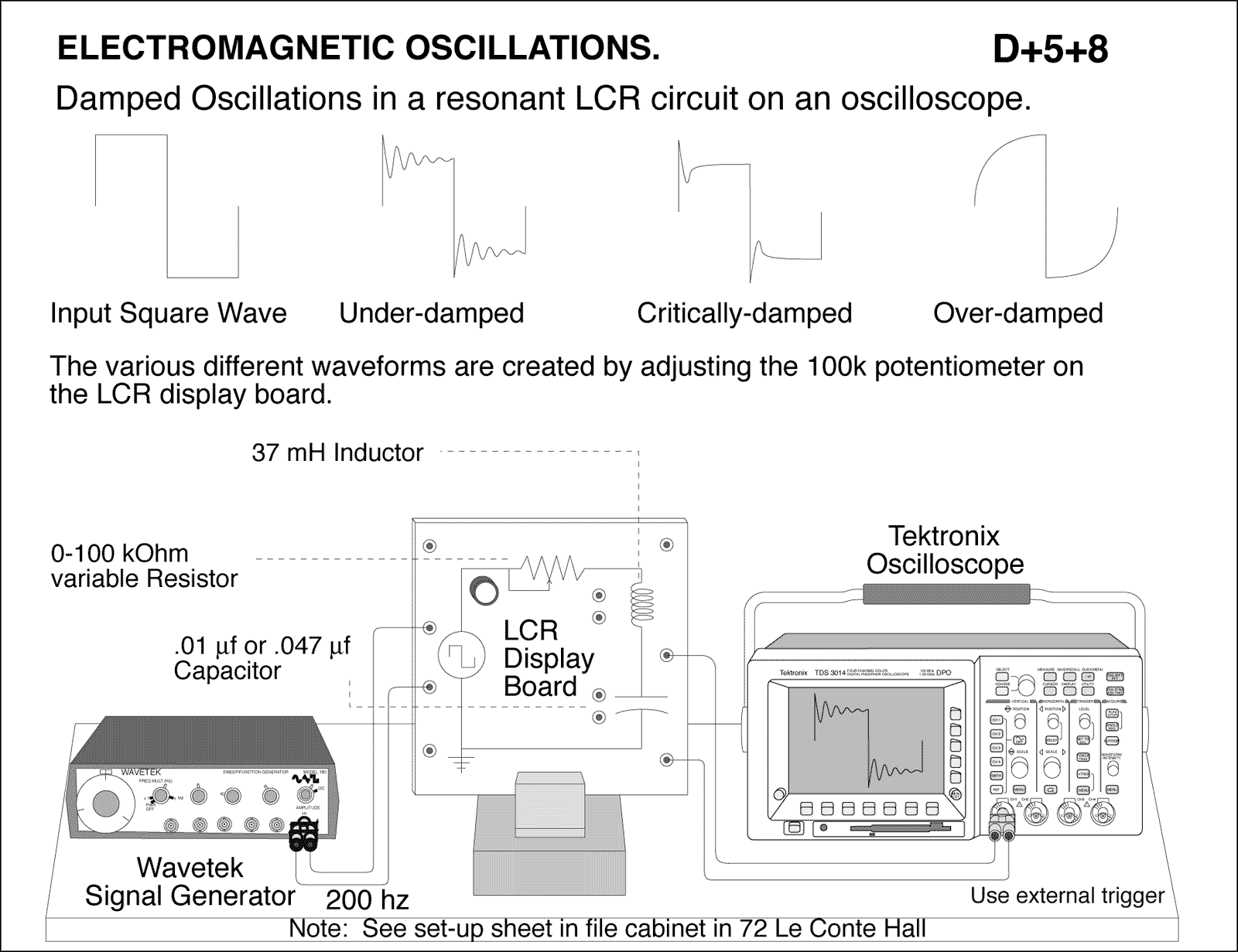

Damped oscillations in a resonant LCR circuit on an oscilloscope.
• D+5+8
Damped oscillations in a resonant LCR circuit on an oscilloscope.The various different waveforms are reated by adjusting the 100k potentiometer on the LCR display board. Note: See set-up sheet in file cabinet in 72 Le Conte Hall. ELECTROMAGNETIC OSCILLATIONS
