Airy's disk: Pinhole diffraction using laser beam.

6C20.30 • E+10+10

diagram for demo

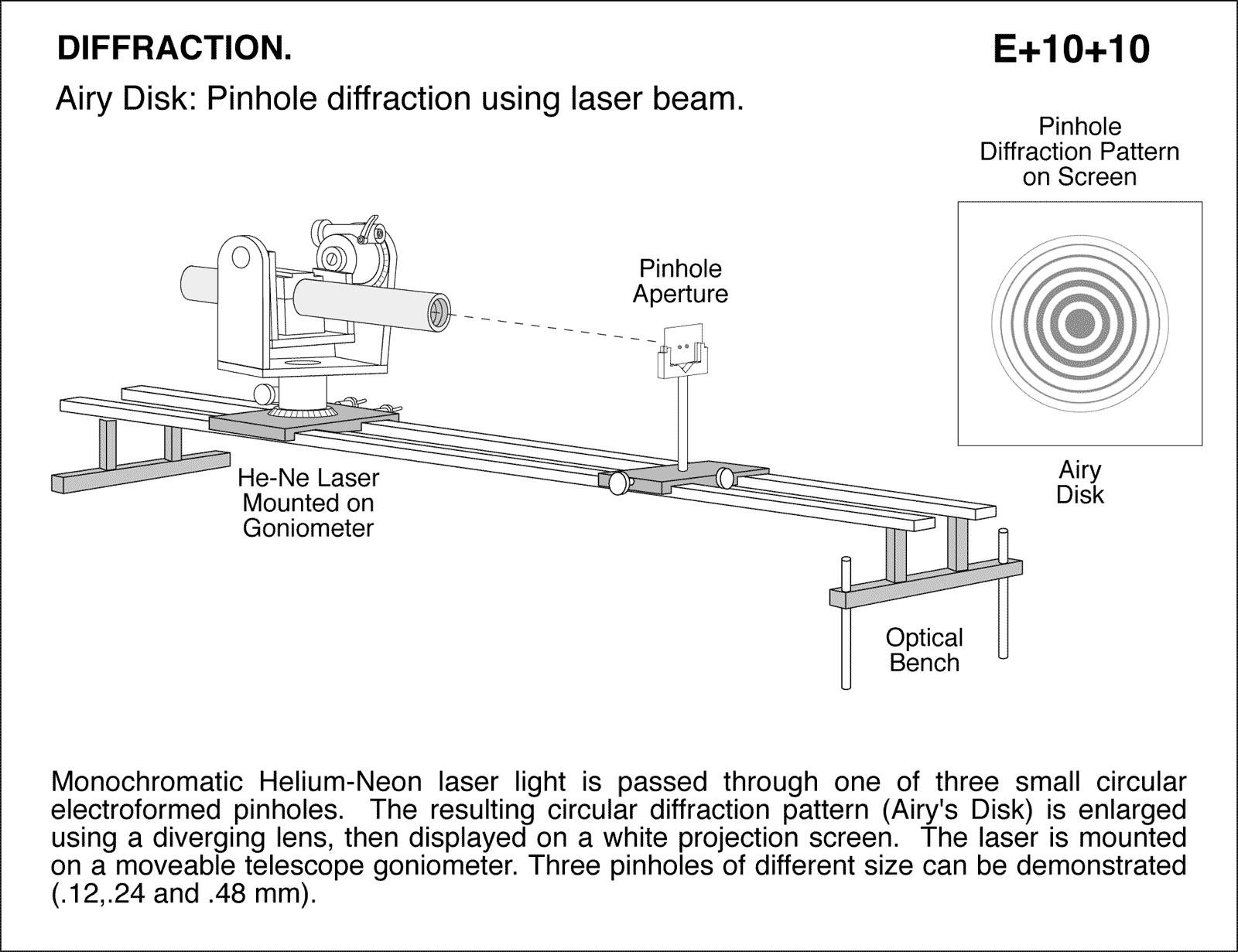

Airy Disk: Pinhole diffraction using laser beam. Monochromatic Helium-Neon laser light is passed through one of three small circular electroformed pinholes. The resulting circular diffraction pattern (Airy's Disk) is enlarged using a diverging lens, then displayed on a white projection screen. The laser is mounted on a moveable telescope goniometer. Three pinholes of different size can be demonstrated (.12,.24 and .48 mm).

Related Demos

6C20.15 Diffraction about pinhead, razorblade, wood screw using laser. 6C20.45 Microwave zone plates. 6C20.10 Poisson's spot: Interference pattern within circular shadow.
