Photoelectric effect: Light on P-N junction causes current flow.

• D+60+4

diagram for demo

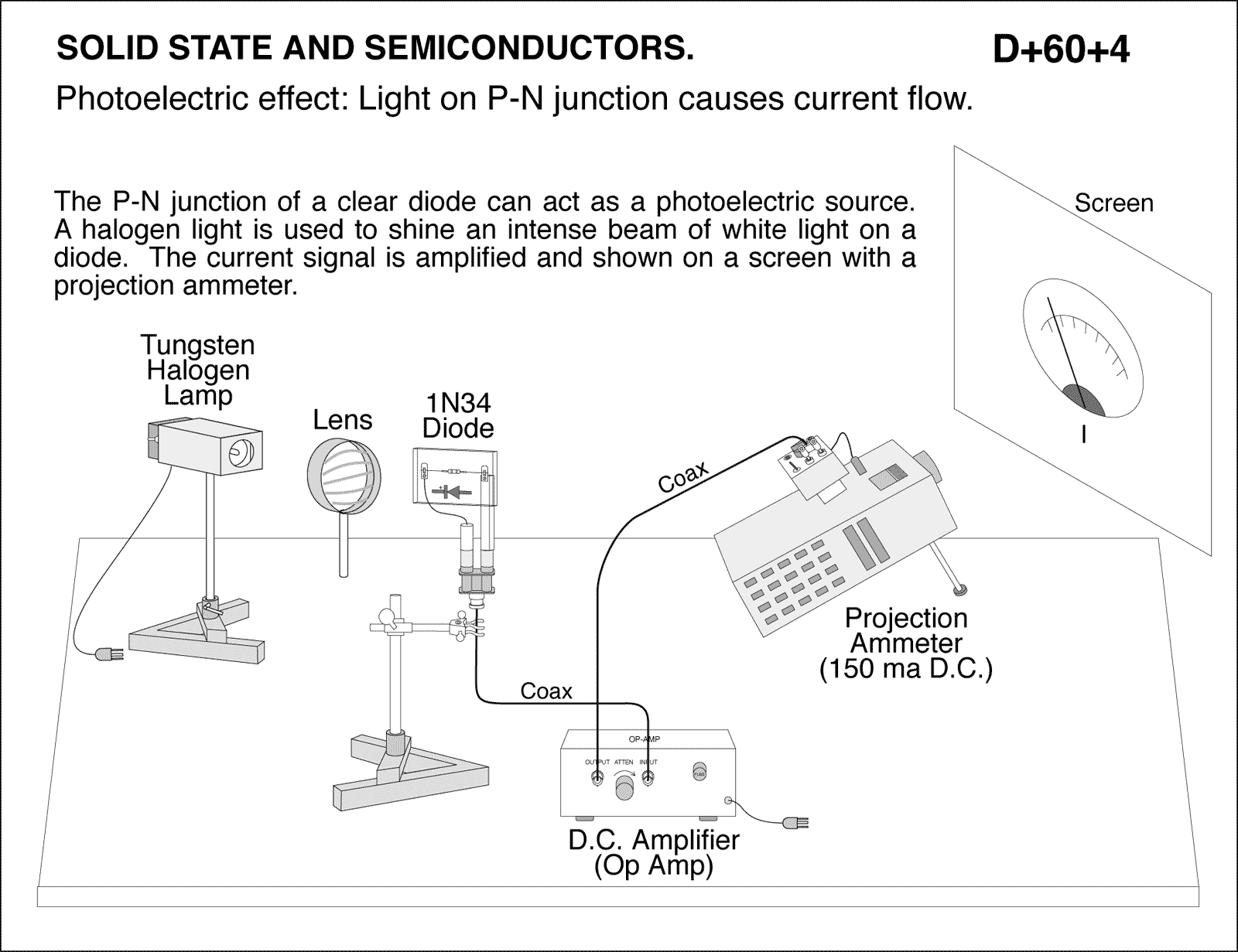

Photoelectric effect: Light on P-N junction causes current flow. The P-N junction of a clear diode can act as a photoelectric source. A halogen light is used to shine an intense beam of white light on a diode. The current signal is amplified and shown on a screen with a projection ammeter.
