Measurement of temperature: Various types of thermometers.
4A10.10 • C+75+0

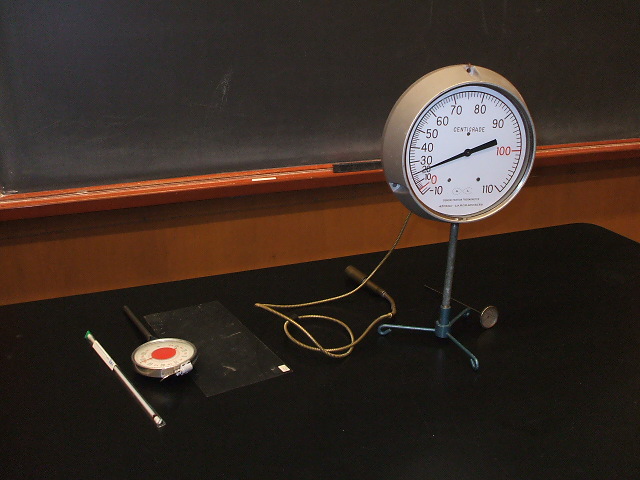

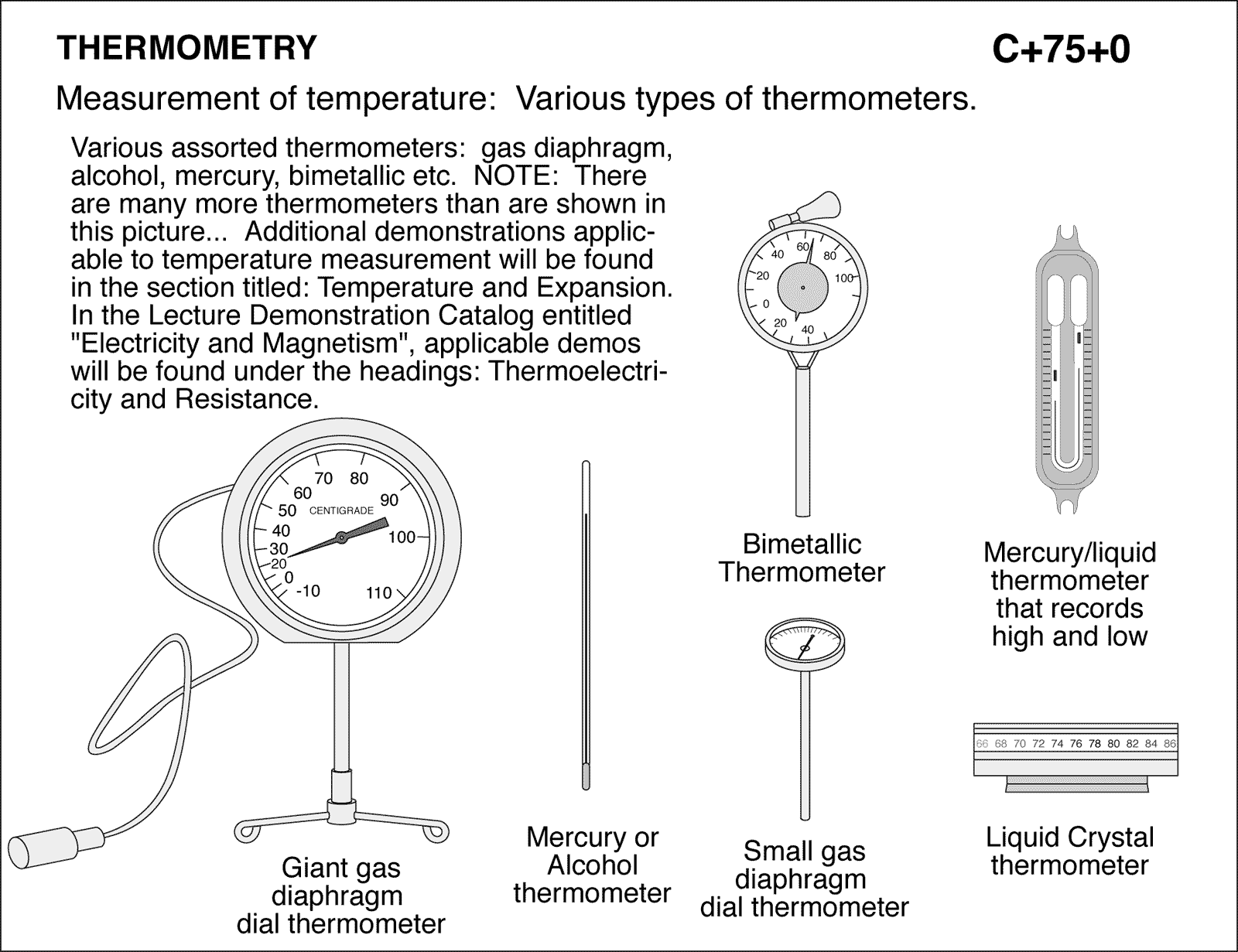

Measurement of temperature: Various types of thermometers. Giant gas diaphragm dial thermometer, Mercury or Alcohol thermometer, Liquid Crystal thermometer, Mercury/liquid thermometer that records high and low, Small gas diaphragm dial thermometer, Bimetallic Thermometer, Various assorted thermometers: gas diaphragm, alcohol, mercury, bimetallic etc. NOTE: There are many more thermometers than are shown in this picture... Additional demonstrations applicable to temperature measurement will be found in the section titled: Temperature and Expansion. In the Lecture Demonstration Catalog entitled "Electricity and Magnetism", applicable demos will be found under the headings: Thermoelectricity and Resistance. CHARLES' LAW.
Related Demos
C+75+25
Galilean thermometer C+75+5
Transparency: Comparison of F deg , C deg , and K temperature scales. C+75+10
Transparency: Chronological history of the concepts of heat. C+75+15
Galileo's air thermometer forces liquid down when heated. C+75+20
Liquid Crystals: sheet changes colors with body temperature.
