Sire's Polytrope.

1Q50.54 • A+30+35

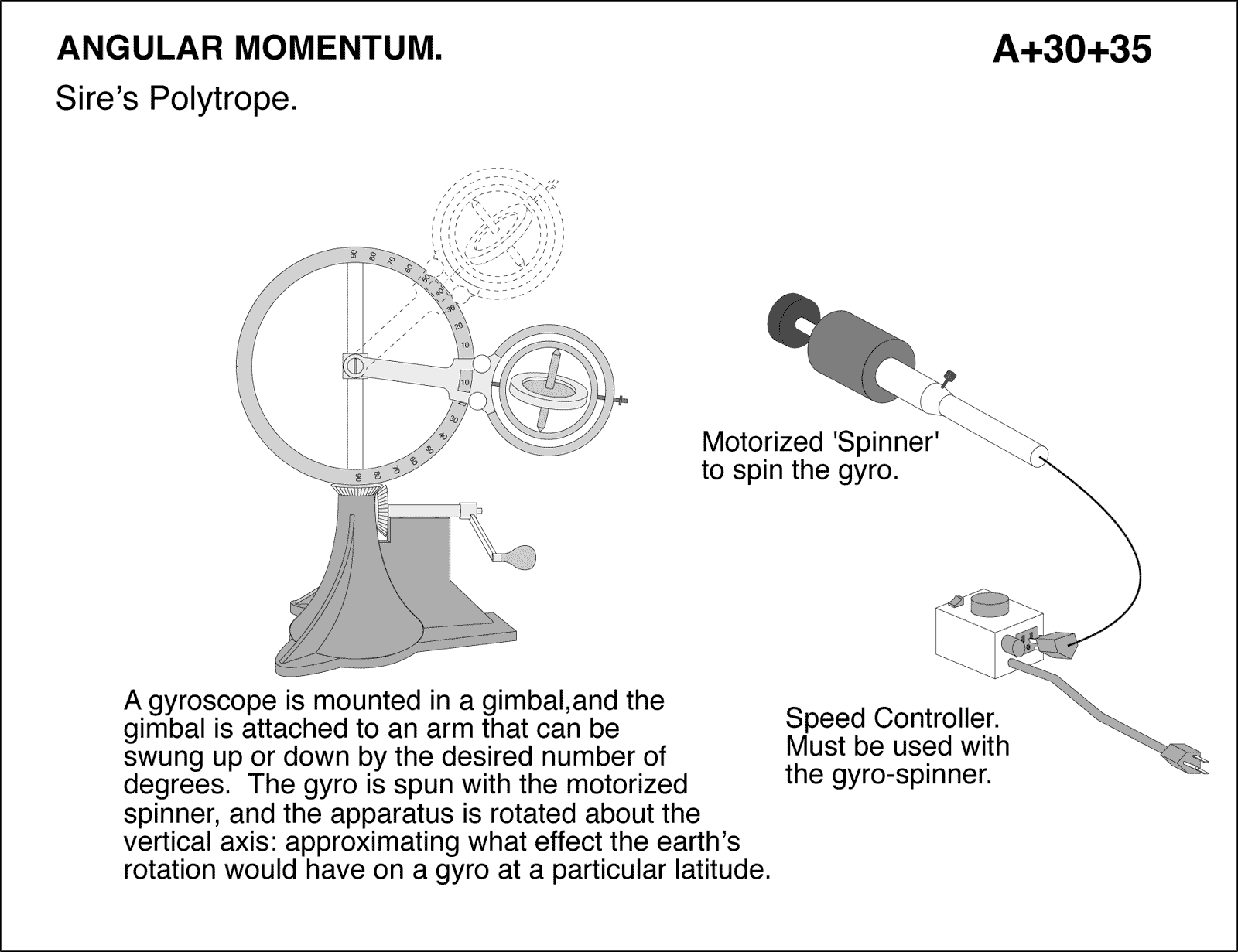

diagram for demo

Sire's Polytrope. A gyroscope is mounted in a gimbal,and the gimbal is attached to an arm that can be swung up or down by the desired number of degrees. The gyro is spun with the motorized spinner, and the apparatus is rotated about the vertical axis: approximating what effect the earth's rotation would have on a gyro at a particular latitude. Speed controller must be used with gyro spinner.

Related Demos

1Q50.90 Maxwell's top, has adjustable center of gravity. 1Q50.40 Large gyroscope in a suitcase.
A+30+65 Bike with one foot long trail A+30+70 Hoop thrown forward rolls backwards A+30+0 Minor's apparatus: Movable discs rotated by falling weight. A+30+5 Maxwell's wheel: Flywheel with axle, supported on strings or stand. A+30+10 Rotational inertia device: Sliding weights on rotating rod. A+30+15 Rotating chair with dumbbells or weighted bicycle wheel. A+30+20 Maxwell's top, has adjustable center of gravity. A+30+25 Large conical aluminum top. A+30+30 Gyroscopes; various. A+30+40 Film: "Conservation laws in zero G", sound, 14 min.. A+30+45 Large gyroscope in a suitcase. A+30+50 Rotating Platform for Outreach A+30+60 Spinning Bicycle Wheel Stays Upright. A+30+55 Falling coffee cup is arrested by friction
