Reflection hologram viewed with white light.

6Q10.10 • E+20+6

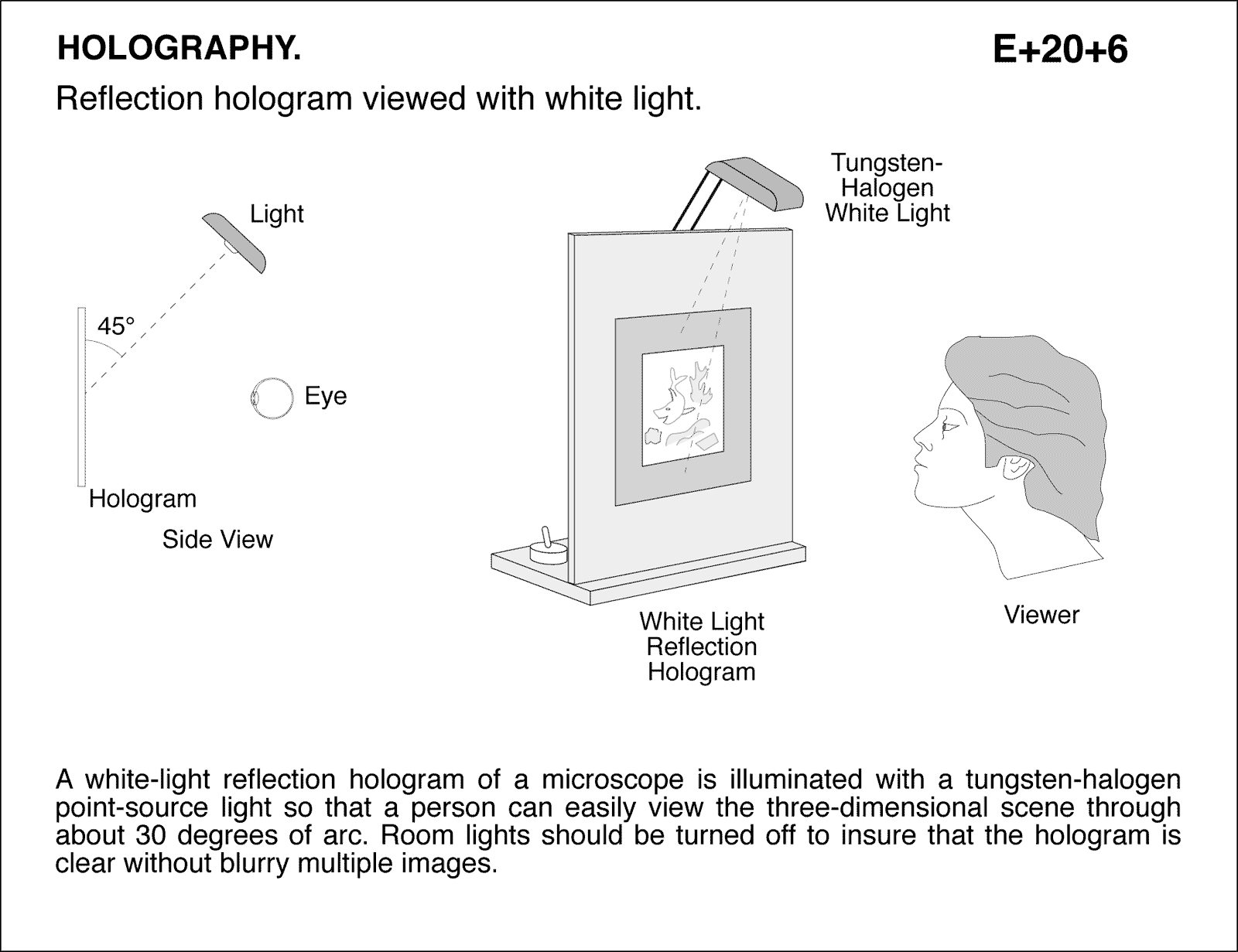

diagram for demo

Reflection hologram viewed with white light. A white-light reflection hologram of a microscope is illuminated with a tungsten-halogen point-source light so that a person can easily view the three-dimensional scene through about 30 degrees of arc. Room lights should be turned off to insure that the hologram is clear without blurry multiple images.

Related Demos

6Q10.10 Transmission hologram viewed with laser light.
E+20+0 Films: "Laser light", U of Utah, sound, 38 min.; "Introduction to Holography",sound, 17 min.; "Introduction to Lasers", sound, 17 min. E+20+5 Transmission hologram viewed with laser light.
