Freezing liquid Nitrogen.

4C20.40 • C+80+2

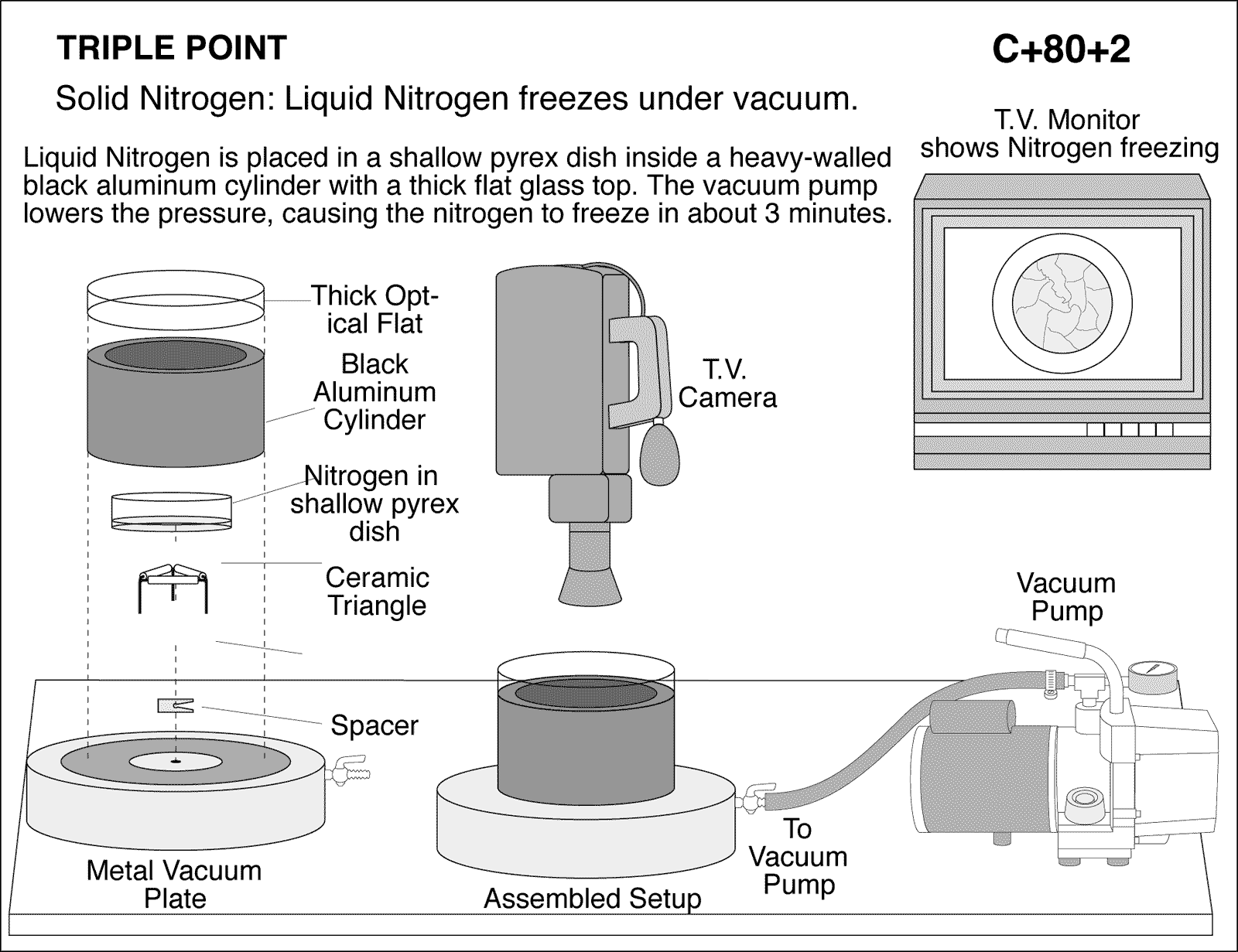

diagram for demo

Solid Nitrogen: Liquid Nitrogen freezes under vacuum. Liquid Nitrogen is placed in a shallow pyrex dish inside a heavy-walled black aluminum cylinder with a thick flat glass top. The vacuum pump lowers the pressure, causing the nitrogen to freeze in about 3 minutes. TV monitor shows Nitrogen freezing. TRIPLE POINT.

Related Demos

4C20.53 Computer demo: Heat of fusion of tin. 4C20.20 Ice bomb: Iron sphere ruptured by freezing water. 4C20.45 CO2 fire extinguisher: Expanding gas freezes into snow.
C+80+0 Triple Point: Cooled water in sealed cell exhibits all three phases. C+80+5 Triple Point demo: Water boils under vacuum making ice. C+80+10 P.V.T. surface model for water. C+80+15 P.V.T. surface model for carbon dioxide. C+80+20 Wall chart of isothermals.
