Transverse 3-dimensional wave model, hand-cranked.

3B10.70 • B+25+1

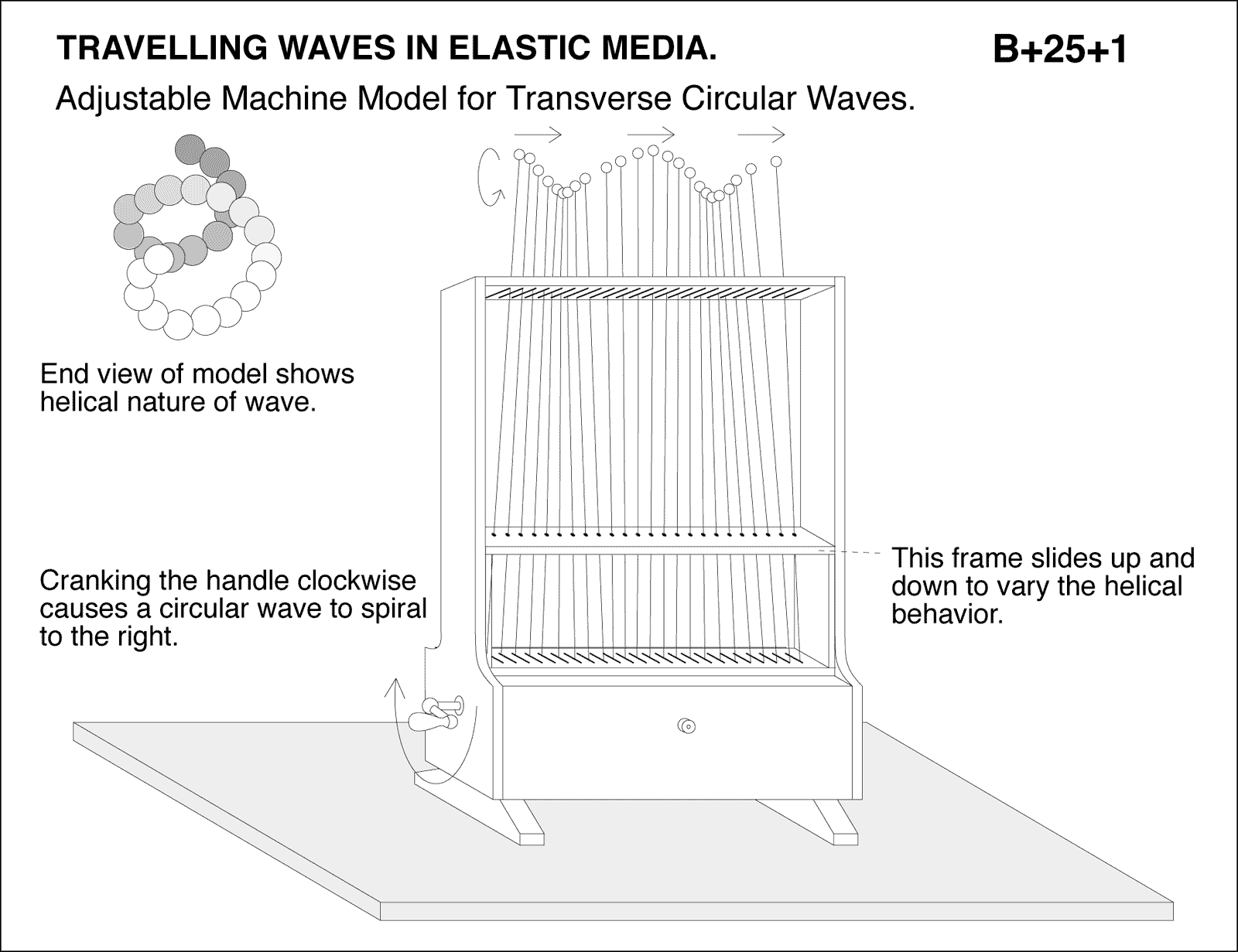

diagram for demo

Adjustable Machine Model for Transverse Circular Waves. Cranking the handle clockwise causes a circular wave to spiral to the right.
