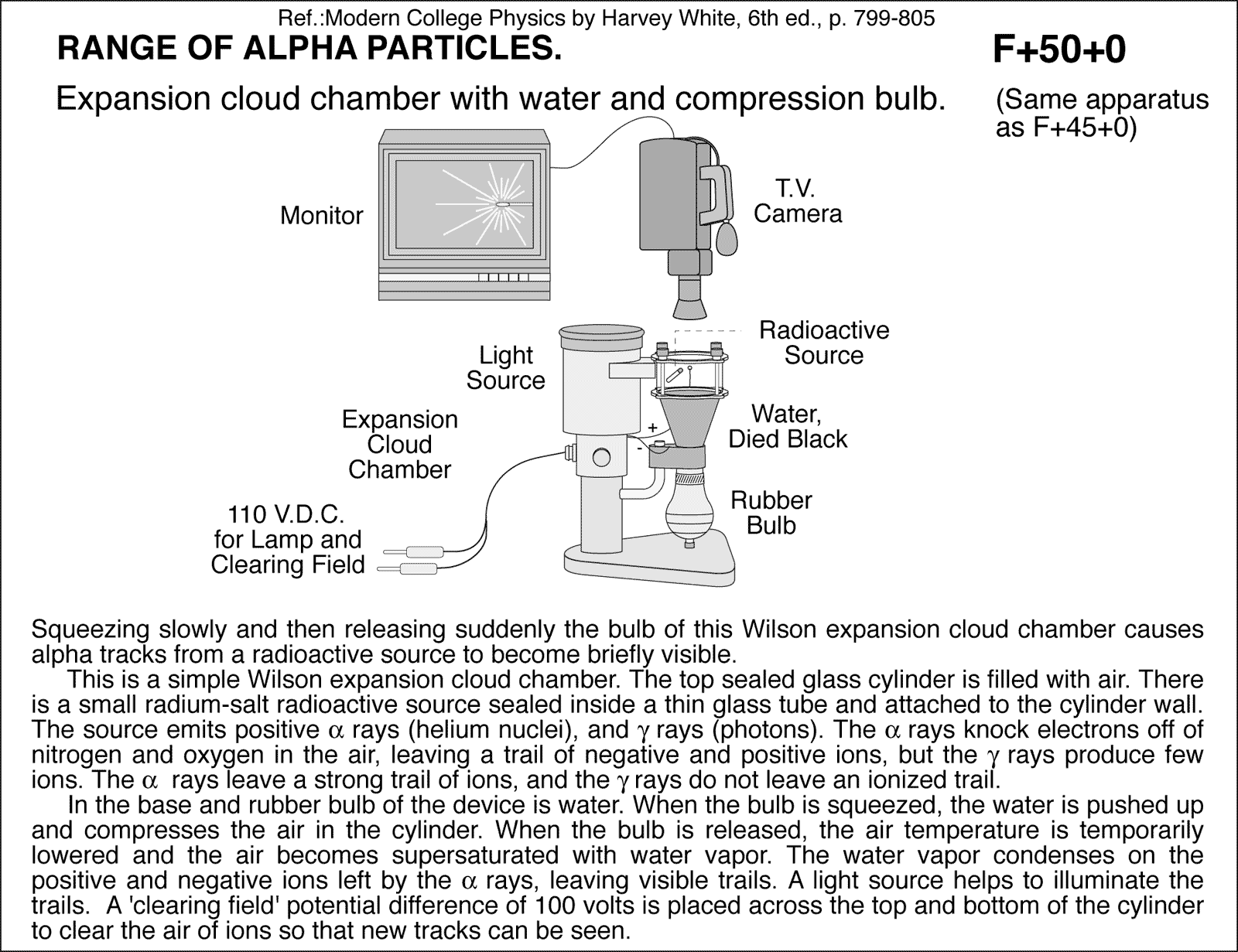

Alpha range measured using small cloud chamber.

7D30.50 • F+50+0

diagram for demo

Alpha range measured using small cloud chamber. . . . . . . . . . . . . . . ◆◆ Franck-Hertz Experiment

Related Demos

7D30.50 Expansion cloud chamber with water and compression bulb. 7D30.50 Wilson cloud chamber, piston compression type. 7D30.60 Cloud chamber with dry ice and alcohol shown on TV camera. 7D30.11 Scintillation counter using Geiger tube. 7D30.70 Large mechanical model of the cyclotron.
