Hand-held gratings for class to view Hg, Ne discharge tubes.

7B10.10 • E+15+25

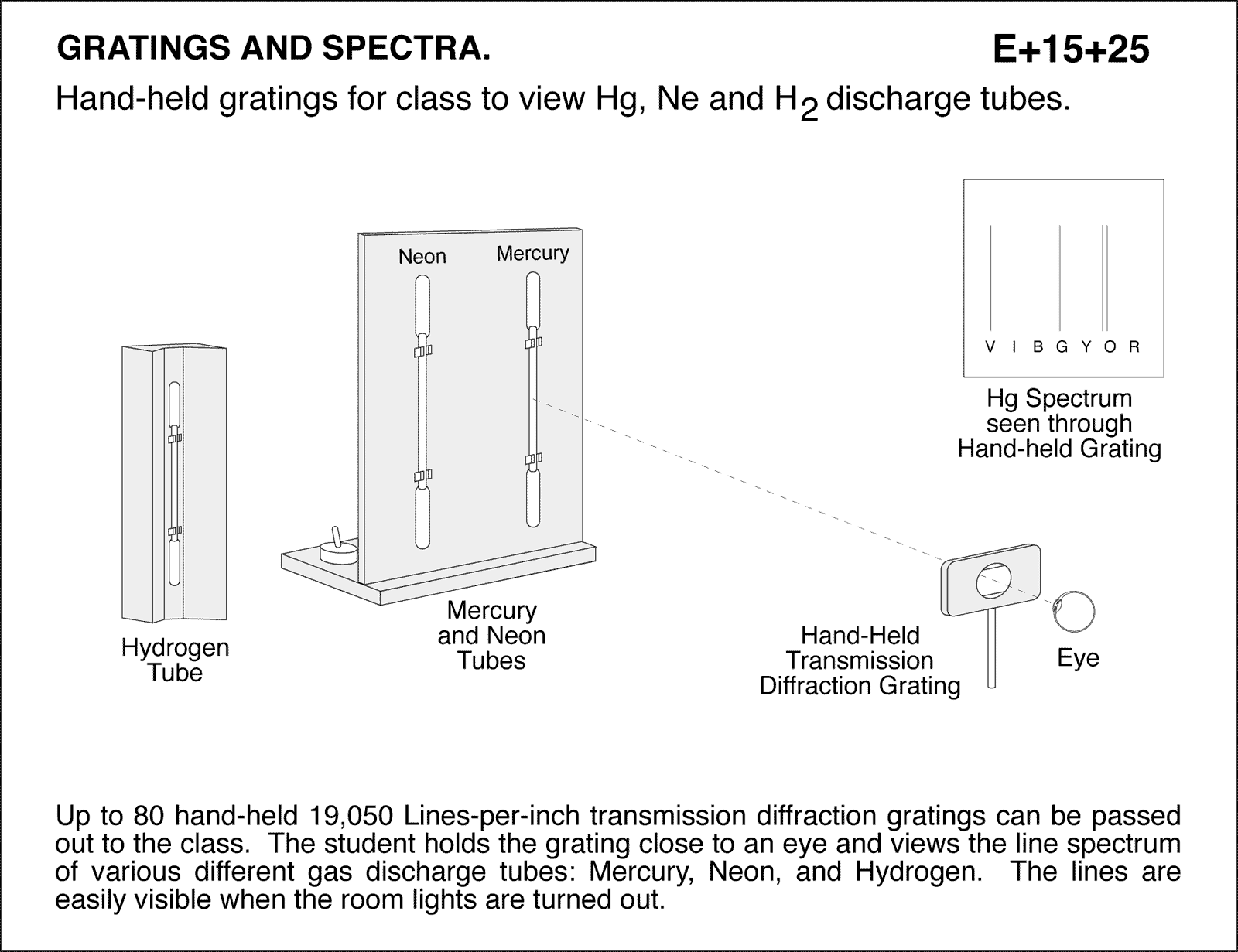

diagram for demo

Up to 80 hand-held 19,050 Lines-per-inch transmission diffraction gratings can be passed out to the class. The student holds the grating close to an eye and views the line spectrum of various different gas discharge tubes: Mercury, Neon, and Hydrogen. The lines are easily visible when the room lights are turned out.
