Conical pendulum: Similar to A+0+35 with standard weights.

1D50.25 • A+0+40

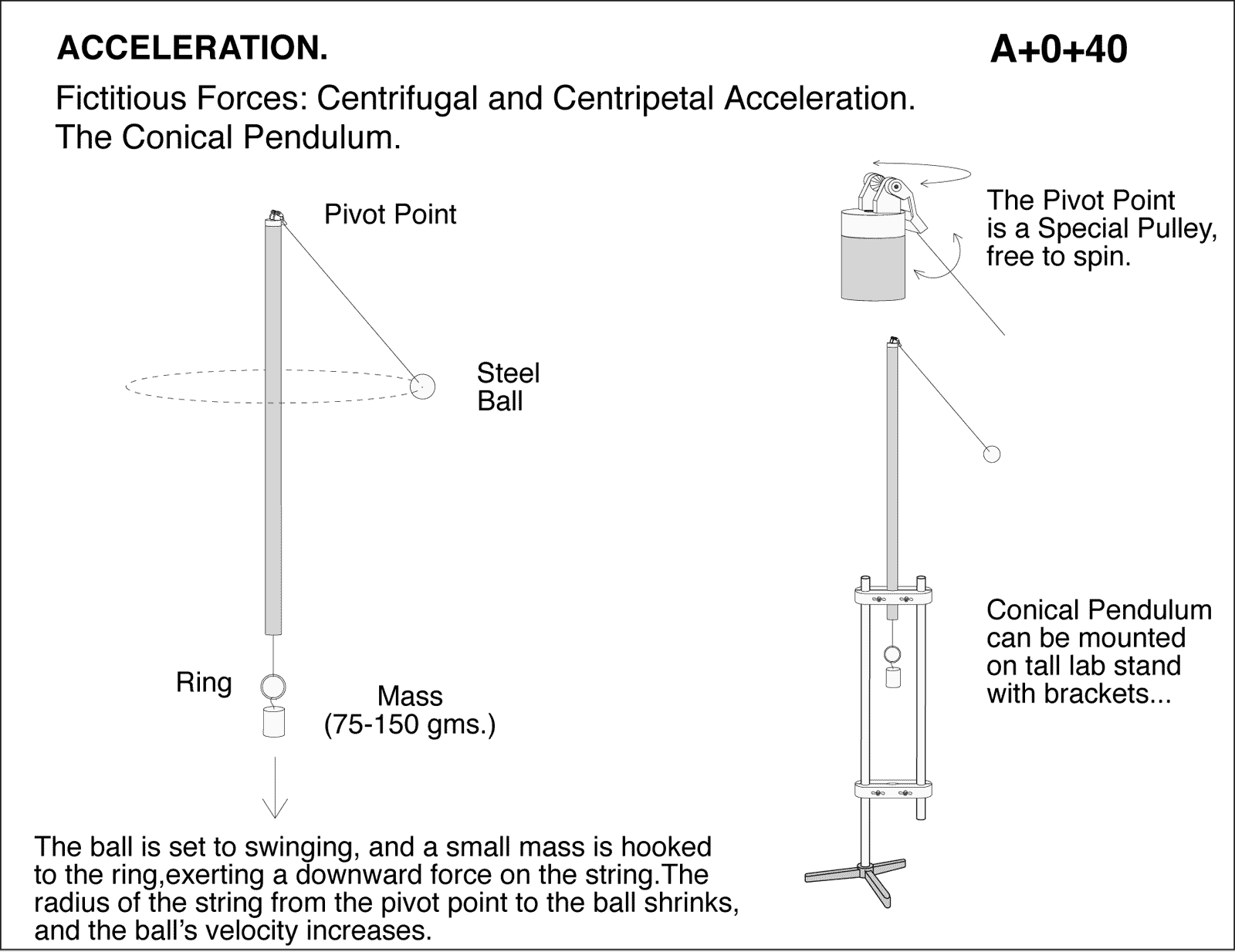

Fictitious Forces: Centrifugal and Centripetal Acceleration. The Conical Pendulum. The ball is set to swinging, and a small mass is hooked to the ring, exerting a downward force on the string.The radius of the string from the pivot point to the ball shrinks, and the ball's velocity increases. Conical Pendulum can be mounted on tall lab stand with brackets...
