Phototube circuit allows current flow in one direction only.
• F+15+10

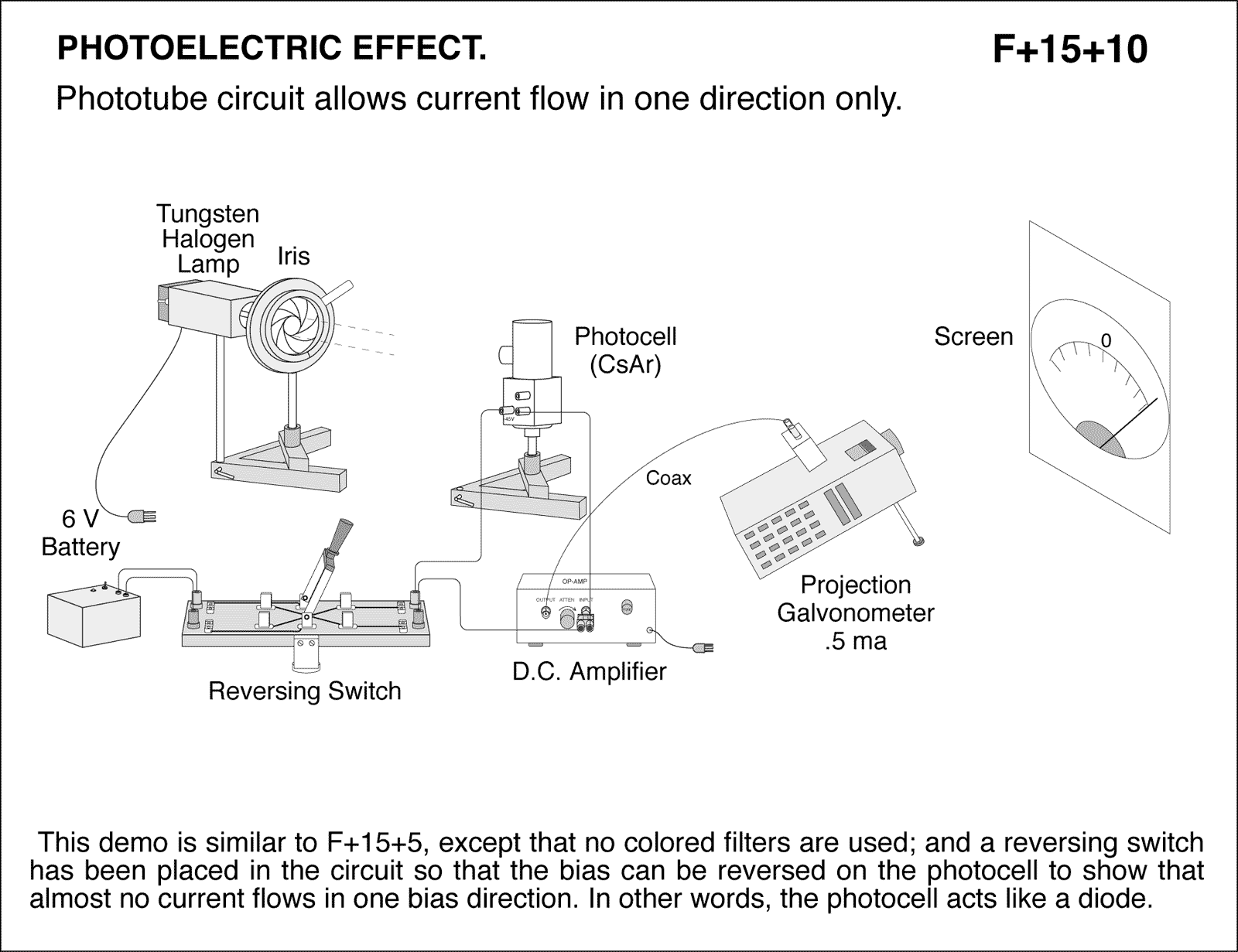

Phototube circuit allows current flow in one direction only. This demo is similar to XX, except that no colored filters are used; and a reversing switchhas been placed in the circuit so that the bias can be reversed on the photocell to show that almost no current flows in one bias direction. In other words, the photocell acts like a diode.
Related Demos
F+15+0
UV light hits charged zinc plate and discharges electroscope. F+15+5
Light through different filters into phototube changes current. F+15+15
EMF generated by phototube using halogen light source. F+15+20
Commercial solar cell spins propeller using halogen light source. F+15+25
Light hits diode,causes current flow. Uses arc lamp. F+15+30
NPN junction as a phototransistor amplifier. F+15+35
Recording modulates laser beam which hits solar cell and amplifier. F+15+40
Film loop: Photoelectric effect, 4:02 min. F+15+45
Applet: Conductivity F+15+50
Applet: Davisson-Germer: Electron Diffraction F+15+55
Applet: Photoelectric Effect
