Shear: Foam block.

1R30.20 • C+90+16

diagram for demo

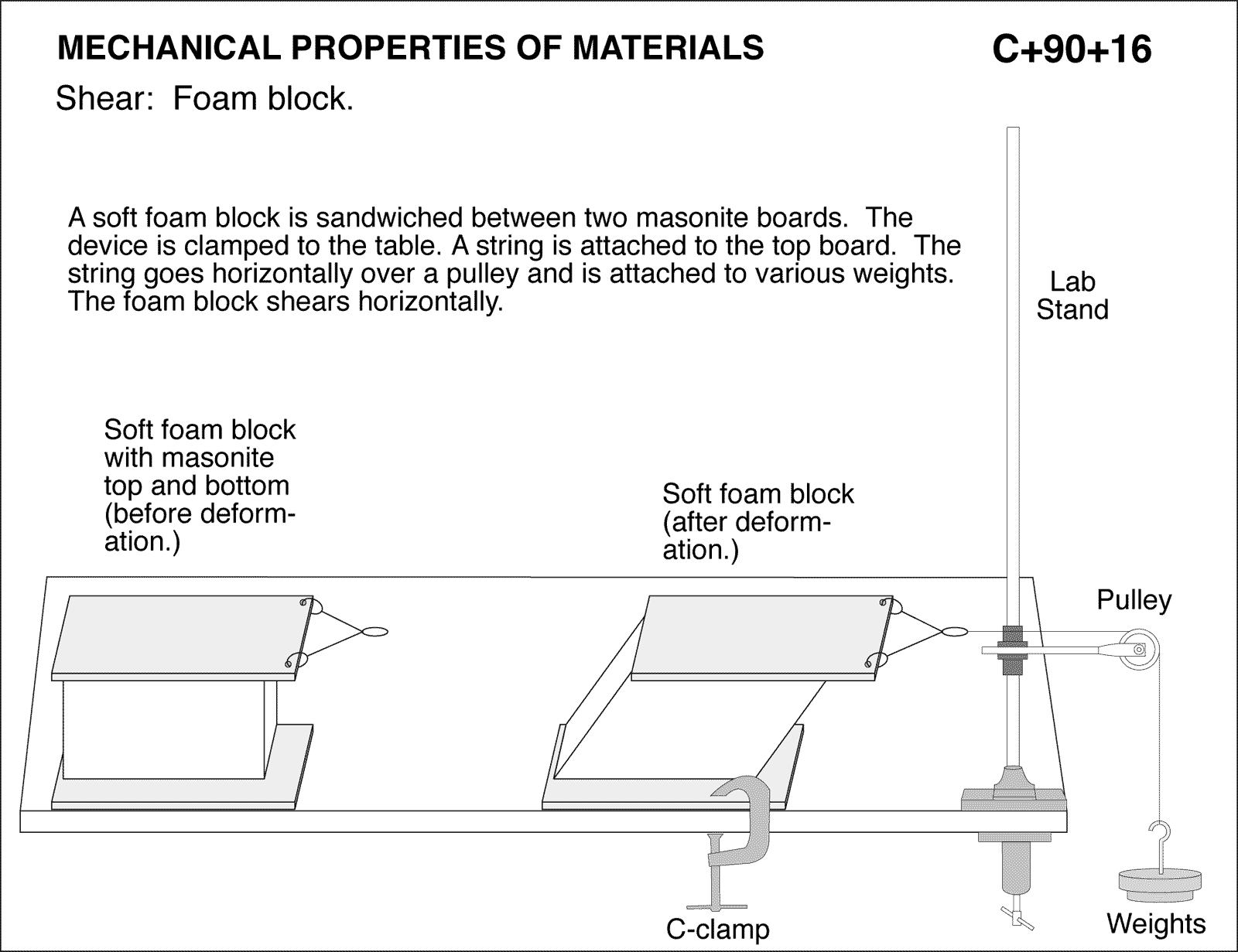

Shear: Foam block. Soft foam block with masonite top and bottom (before deformation.) Soft foam block (after deformation.) A soft foam block is sandwiched between two masonite boards. The device is clamped to the table. A string is attached to the top board. The string goes horizontally over a pulley and is attached to various weights. The foam block shears horizontally. MECHANICAL PROPERTIES OF MATERIALS
