Chladni's Figures: Vibrational modes of a metal plate

3D40.31 • B+55+7

diagram for demo

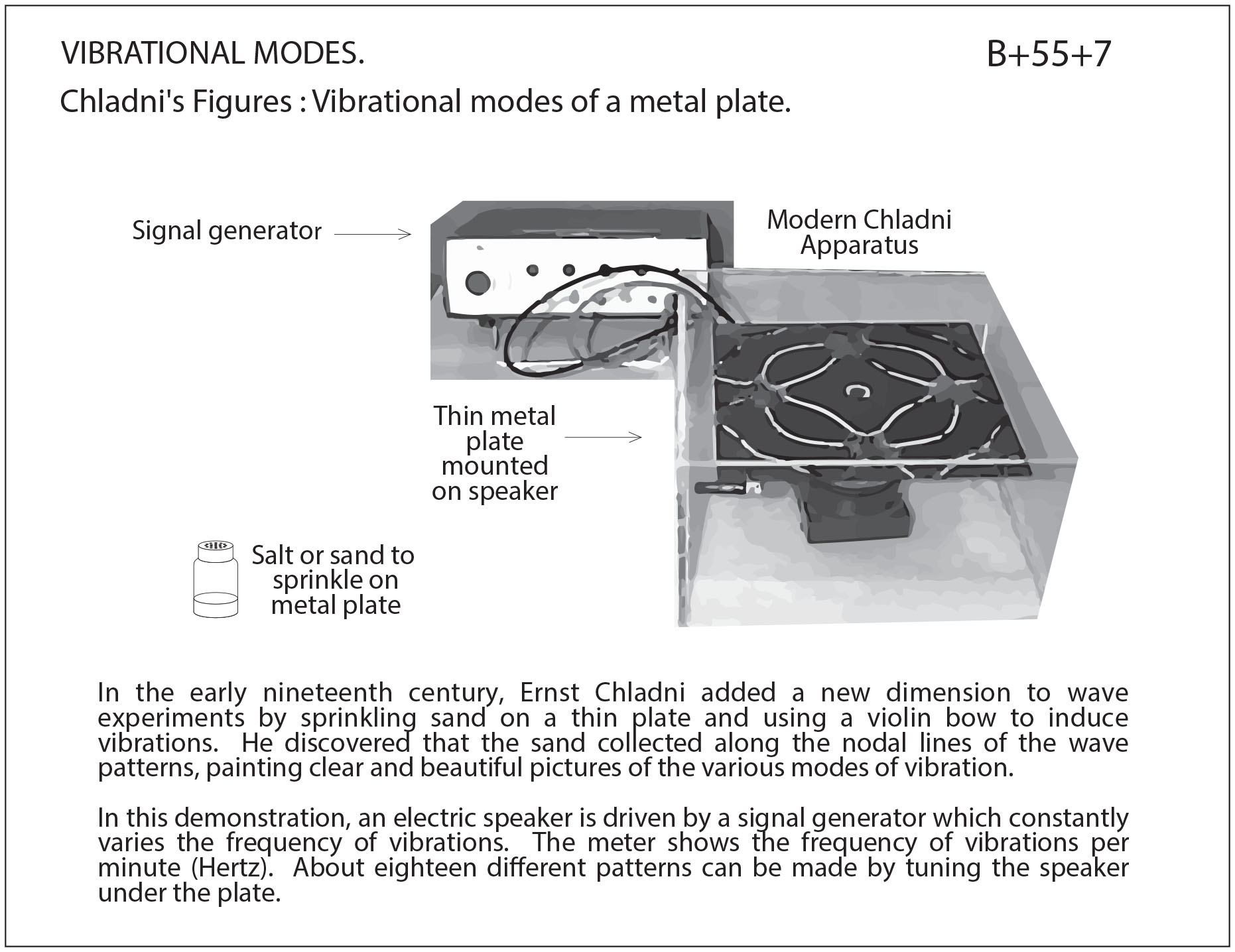

In this demonstration, an electric speaker is driven by a signal generator which constantly varies the frequency of vibrations. The meter shows the frequency of vibrations per minute (Hertz). About eighteen different pattens can be made by tuning the speaker under the plate.
